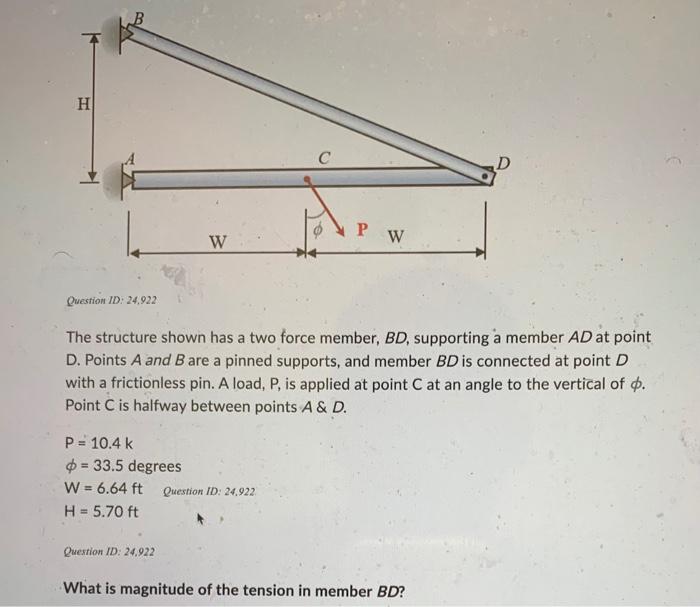

H| B P = 10.4 k = 33.5 degrees W = 6.64 ft H = 5.70 ft W Question ID: 24,922 The structure shown has a two force member, BD, supporting a member AD at point D. Points A and B are a pinned supports, and member BD is connected at point D with a frictionless pin. A load, P, is applied at point C at an angle to the vertical of . Point C is halfway between points A & D. Question ID: 24,922 C Question ID: 24,922 P W D What is magnitude of the tension in member BD?
