Question 1 [30 points] Given the signals and as shown in the figures below: x(t) = u(t) — u(t — 2) h(t) = 2(u(t — 1) — u

[answerhappygod]

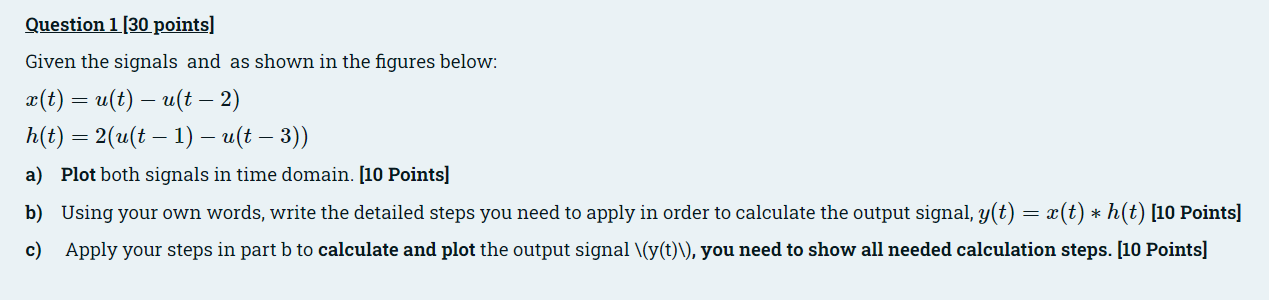

Question 1 30 Points Given The Signals And As Shown In The Figures Below X T U T U T 2 H T 2 U T 1 U 1 (41.8 KiB) Viewed 30 times

Question 1 [30 points] Given the signals and as shown in the figures below: x(t) = u(t) — u(t — 2) h(t) = 2(u(t — 1) — u(t − 3)) a) Plot both signals in time domain. [10 Points] b) Using your own words, write the detailed steps you need to apply in order to calculate the output signal, y(t) = x(t) ⋆ h(t) [10 Points] c) Apply your steps in part b to calculate and plot the output signal y(t), you need to show all needed calculation steps. [10 Points]
