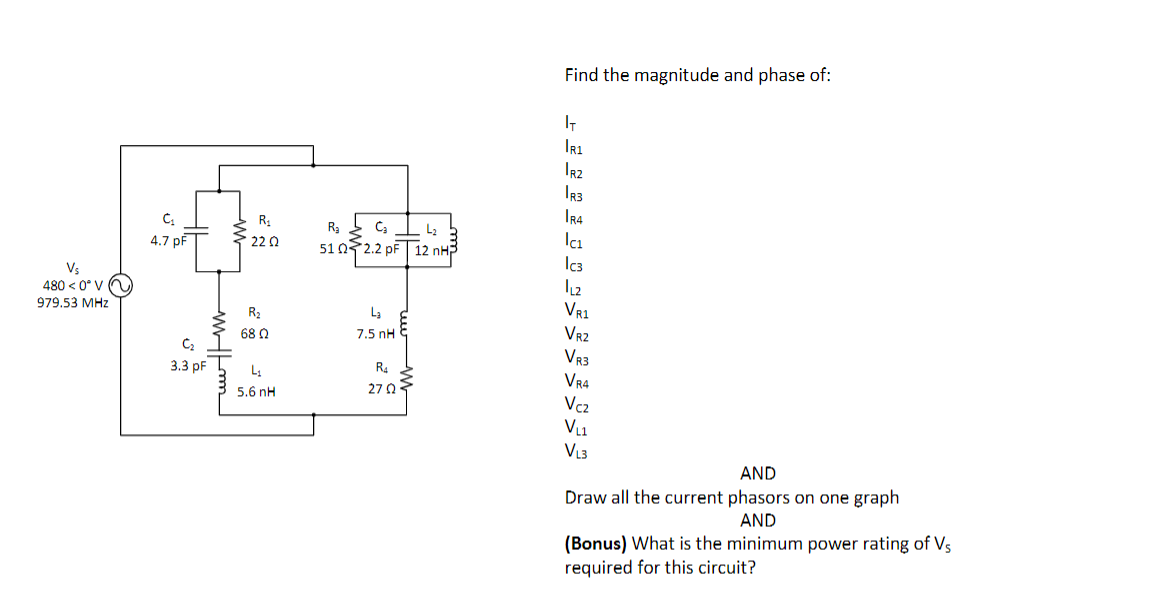

Vs 480 <0° V 979.53 MHz C₁ 4.7 pF C₂ 3.3 pF R₁ 22 Q2 R₂ 68 Q L₁ 5.6 nH R₂ C₂ 51022.2 pF ها 7.5 nH R4 2702 L₂ 12 nH Find
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Vs 480 <0° V 979.53 MHz C₁ 4.7 pF C₂ 3.3 pF R₁ 22 Q2 R₂ 68 Q L₁ 5.6 nH R₂ C₂ 51022.2 pF ها 7.5 nH R4 2702 L₂ 12 nH Find
Vs 480 <0° V 979.53 MHz C₁ 4.7 pF C₂ 3.3 pF R₁ 22 Q2 R₂ 68 Q L₁ 5.6 nH R₂ C₂ 51022.2 pF ها 7.5 nH R4 2702 L₂ 12 nH Find the magnitude and phase of: IT IR1 IR2 IR3 IR4 Ic₁ Ic3 ILZ VR1 VR2 VR3 VR4 Vcz V₁₁ VL3 AND Draw all the current phasors on one graph AND (Bonus) What is the minimum power rating of Vs required for this circuit?
