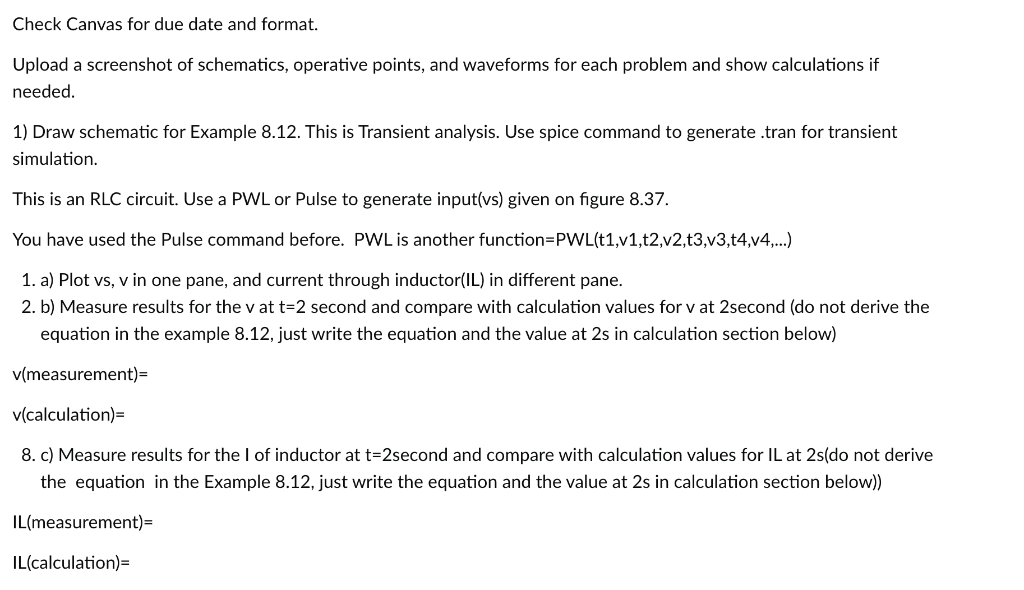

Check Canvas for due date and format. Upload a screenshot of schematics, operative points, and waveforms for each problem and show calculations if needed. 1) Draw schematic for Example 8.12. This is Transient analysis. Use spice command to generate .tran for transient simulation. This is an RLC circuit. Use a PWL or Pulse to generate input(vs) given on figure 8.37. You have used the Pulse command before. PWL is another function=PWL(t1,v1,t2,v2,t3,v3,t4,v4,...) 1. a) Plot vs, v in one pane, and current through inductor(IL) in different pane. 2. b) Measure results for the v at t=2 second and compare with calculation values for v at 2second (do not derive the equation in the example 8.12, just write the equation and the value at 2s in calculation section below) v(measurement)= v(calculation)= 8. c) Measure results for the I of inductor at t=2second and compare with calculation values for IL at 2s(do not derive the equation in the Example 8.12, just write the equation and the value at 2s in calculation section below)) IL(measurement)= IL(calculation)=
Example 8.12 Vs Vs 12 1+ 0 60 Ω 60 Ω 2 (a) (b) 3 H m t (s) F TI । र + T U S
