For the circuit shown below, find the following and show your detailed solution: Knowing that R1=150, R2=152, R3=200 a)

[answerhappygod]

For The Circuit Shown Below Find The Following And Show Your Detailed Solution Knowing That R1 150 R2 152 R3 200 A 1 (49.12 KiB) Viewed 22 times

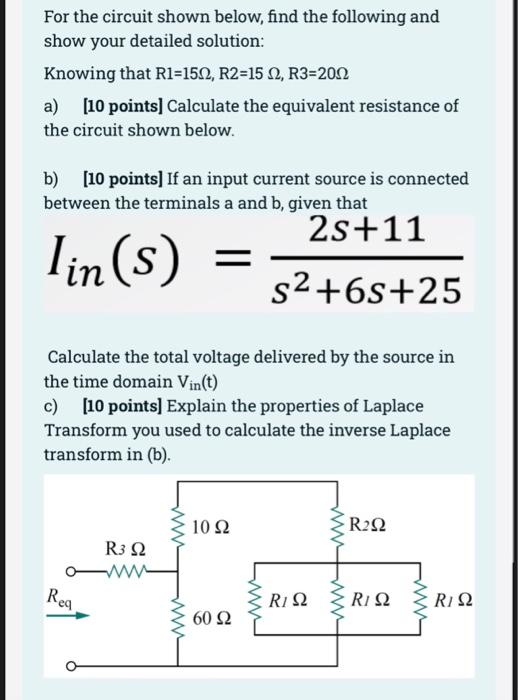

For the circuit shown below, find the following and show your detailed solution: Knowing that R1=150, R2=152, R3=200 a) [10 points] Calculate the equivalent resistance of the circuit shown below. b) [10 points] If an input current source is connected between the terminals a and b, given that 2s+11 lin (s) s²+6s+25 Calculate the total voltage delivered by the source in the time domain Vin(t) c) [10 points] Explain the properties of Laplace Transform you used to calculate the inverse Laplace transform in (b). Req = R3 Q2 www. 10 92 60 92 www R1 QQ2 www R292 RIΩ {RIΩ
