Part 3: Output resistance The output resistance Tps for Ups = 0 is to be measured as a function of the gate-source volta

[answerhappygod]

Part 3 Output Resistance The Output Resistance Tps For Ups 0 Is To Be Measured As A Function Of The Gate Source Volta 1 (47.16 KiB) Viewed 53 times

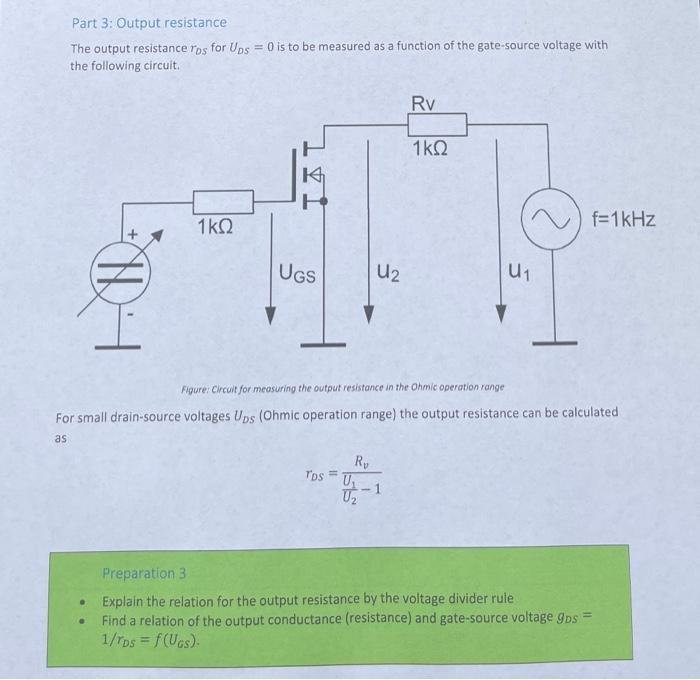

Part 3: Output resistance The output resistance Tps for Ups = 0 is to be measured as a function of the gate-source voltage with the following circuit. . 10:4 ● 1kQ TIL K UGS TDS= R₂ U2 Figure: Circuit for measuring the output resistance in the Ohmic operation range For small drain-source voltages Ups (Ohmic operation range) the output resistance can be calculated as U₁ U₂ Rv 1kQ U₁ f=1kHz Preparation 3. Explain the relation for the output resistance by the voltage divider rule Find a relation of the output conductance (resistance) and gate-source voltage gps = 1/TDS = f(UGS).
