Lab session 4: MOSFET 1. OBJECTIVE OF THIS LAB SESSION This lab examines the behaviors and parameters of a MOSFET transi

Post by answerhappygod »

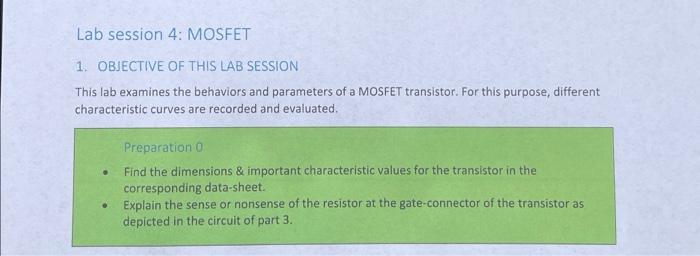

Lab Session 4 Mosfet 1 Objective Of This Lab Session This Lab Examines The Behaviors And Parameters Of A Mosfet Transi 1
Lab Session 4 Mosfet 1 Objective Of This Lab Session This Lab Examines The Behaviors And Parameters Of A Mosfet Transi 1 (22.64 KiB) Viewed 23 times
Lab session 4: MOSFET 1. OBJECTIVE OF THIS LAB SESSION This lab examines the behaviors and parameters of a MOSFET transistor. For this purpose, different characteristic curves are recorded and evaluated. . Preparation 0 Find the dimensions & important characteristic values for the transistor in the corresponding data-sheet. Explain the sense or nonsense of the resistor at the gate-connector of the transistor as depicted in the circuit of part 3.
