Question 2 [30 Points] For the circuit shown below, find the following and show your detailed solution: a) [10 points] C

Post by answerhappygod »

Question 2 30 Points For The Circuit Shown Below Find The Following And Show Your Detailed Solution A 10 Points C 1
Question 2 30 Points For The Circuit Shown Below Find The Following And Show Your Detailed Solution A 10 Points C 1 (79.55 KiB) Viewed 43 times
Voltage value is u of t

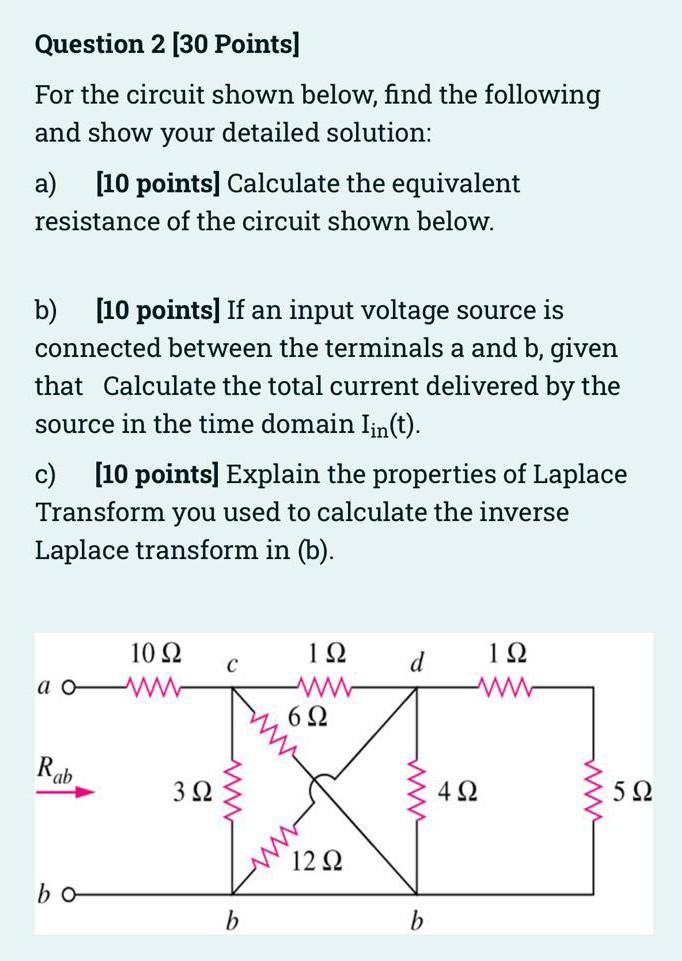

Question 2 [30 Points] For the circuit shown below, find the following and show your detailed solution: a) [10 points] Calculate the equivalent resistance of the circuit shown below. b) [10 points] If an input voltage source is connected between the terminals a and b, given that Calculate the total current delivered by the source in the time domain Iin(t). c) [10 points] Explain the properties of Laplace Transform you used to calculate the inverse Laplace transform in (b). a o Rab bo 1092 www 3 Ω 1Ω www 6Ω 1292 d 1Ω ww 4Ω www 5Ω
