3. (2 points) For the three-phase circuit shown below, please use single phase equivalent a. Obtain all phase and line v

[answerhappygod]

3 2 Points For The Three Phase Circuit Shown Below Please Use Single Phase Equivalent A Obtain All Phase And Line V 1 (182.3 KiB) Viewed 79 times

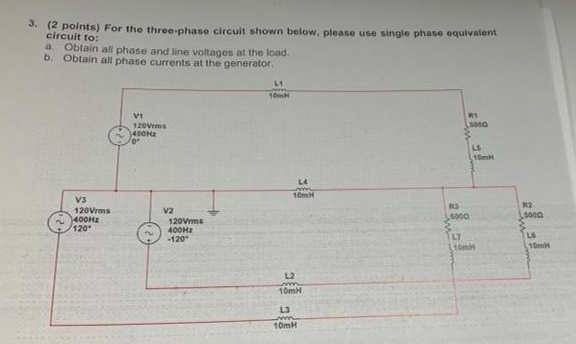

3. (2 points) For the three-phase circuit shown below, please use single phase equivalent a. Obtain all phase and line voltages at the load. b. Obtain all phase currents at the generator. V3 120Vrms 400Hz 120* VI 120Vms 400Hz V2 120Vrms 400Hz -120 LY 10m L4 mm 10mH L2 m 10mH L3 ww 10mH R1 R3 5000 LT [10m 5000 LS 10mH R2 5000 L6 10mH
