4) For each of the following circuits, derive the impulse response, h(t). Here, the output and input for each circuit ar

[answerhappygod]

4 For Each Of The Following Circuits Derive The Impulse Response H T Here The Output And Input For Each Circuit Ar 1 (31.85 KiB) Viewed 29 times

4 For Each Of The Following Circuits Derive The Impulse Response H T Here The Output And Input For Each Circuit Ar 2 (31.85 KiB) Viewed 29 times

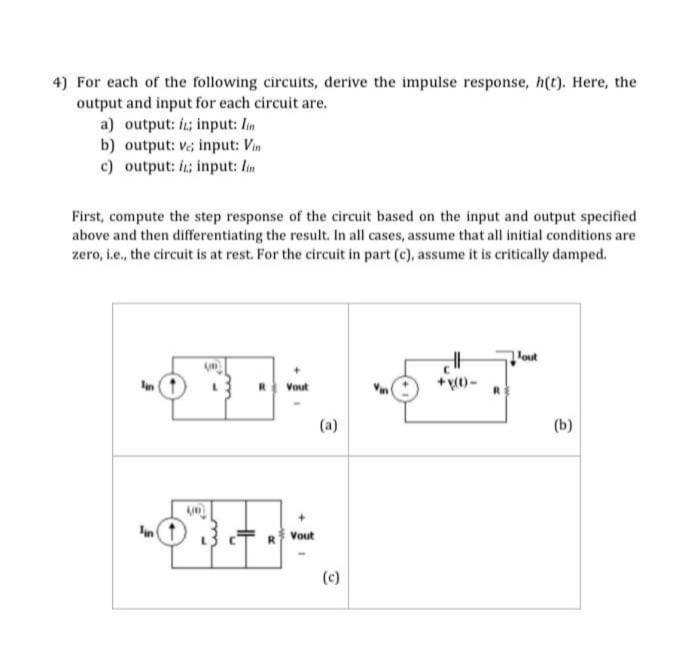

4) For each of the following circuits, derive the impulse response, h(t). Here, the output and input for each circuit are. a) output: i; input: lin b) output: ve input: Vin c) output: i; input: In First, compute the step response of the circuit based on the input and output specified above and then differentiating the result. In all cases, assume that all initial conditions are zero, i.e., the circuit is at rest. For the circuit in part (c), assume it is critically damped. lan 400 Vout H Vout 3 (c) + X(0)- Tout (b)
