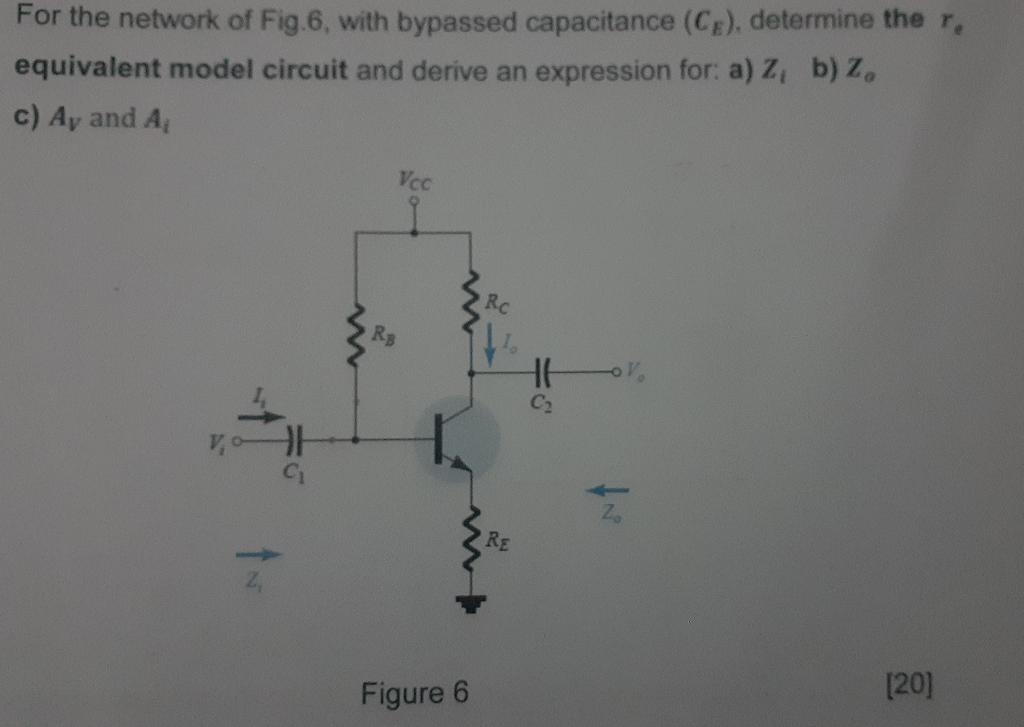

For the network of Fig.6, with bypassed capacitance (CE), determine the r, equivalent model circuit and derive an expression for: a) Z, b) Z, c) Ay and A₁ Vcc RB Figure 6 RE 16 C₂ [20]
