rs logix 5000 need working program that does the following:
rs logix 5000 need working program that does thefollowing:

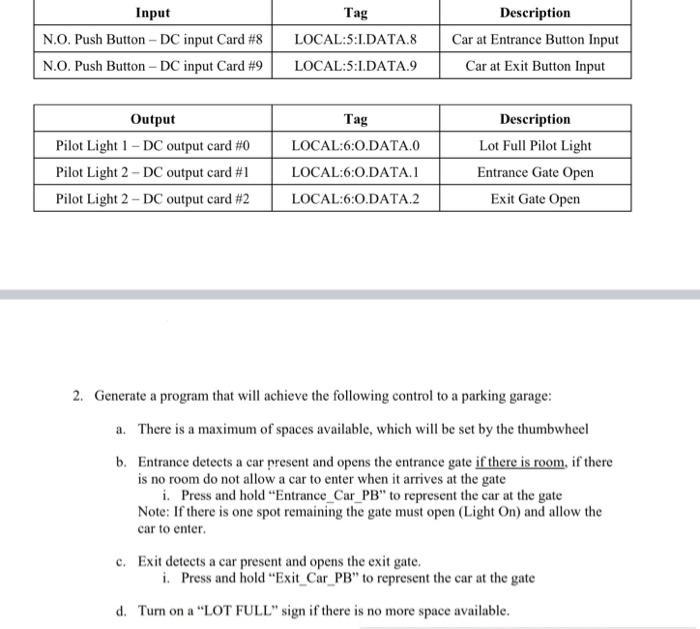

Input N.O. Push Button - DC input Card #8 N.O. Push Button - DC input Card #9 Output Pilot Light 1-DC output card #0 Pilot Light 2-DC output card #1 Pilot Light 2-DC output card #2 Tag LOCAL:5:I.DATA.8 LOCAL:5:I.DATA.9 Tag LOCAL:6:0.DATA.0 LOCAL:6:0.DATA.1 LOCAL:6:0.DATA.2 Description Car at Entrance Button Input Car at Exit Button Input c. Exit detects a car present and opens the exit gate. Description Lot Full Pilot Light Entrance Gate Open Exit Gate Open 2. Generate a program that will achieve the following control to a parking garage: a. There is a maximum of spaces available, which will be set by the thumbwheel b. Entrance detects a car present and opens the entrance gate if there is room, if there is no room do not allow a car to enter when it arrives at the gate i. Press and hold "Entrance_Car_PB" to represent the car at the gate Note: If there is one spot remaining the gate must open (Light On) and allow the car to enter. i. Press and hold "Exit_Car_PB" to represent the car at the gate d. Turn on a "LOT FULL" sign if there is no more space available.
