Part 1: 1. For the circuit in figure 1, use: a) Thevenin's Theorem to find the current through and voltage drop across t

[answerhappygod]

Part 1 1 For The Circuit In Figure 1 Use A Thevenin S Theorem To Find The Current Through And Voltage Drop Across T 1 (24.49 KiB) Viewed 53 times

When A=6

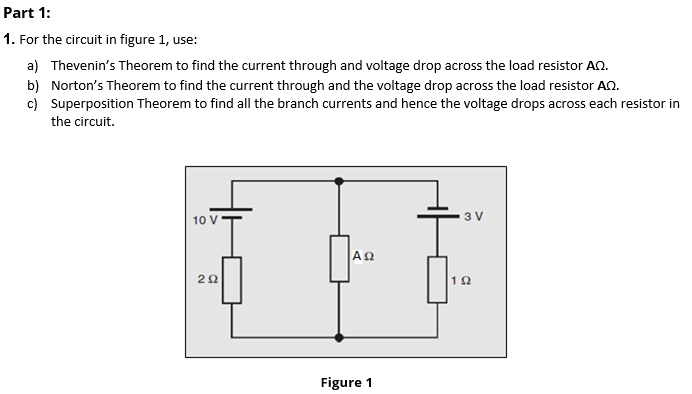

Part 1: 1. For the circuit in figure 1, use: a) Thevenin's Theorem to find the current through and voltage drop across the load resistor AQ. b) Norton's Theorem to find the current through and the voltage drop across the load resistor AQ. Superposition Theorem to find all the branch currents and hence the voltage drops across each resistor in the circuit. c) 10 V 292 ΑΩ Figure 1 192
