2. Para el circuito de la figura, mediante el método de nodos, determine la corriente en la resistencia de 8 ohm. 8 Ω V₁

Post by answerhappygod »

1
1 (43.39 KiB) Viewed 50 times

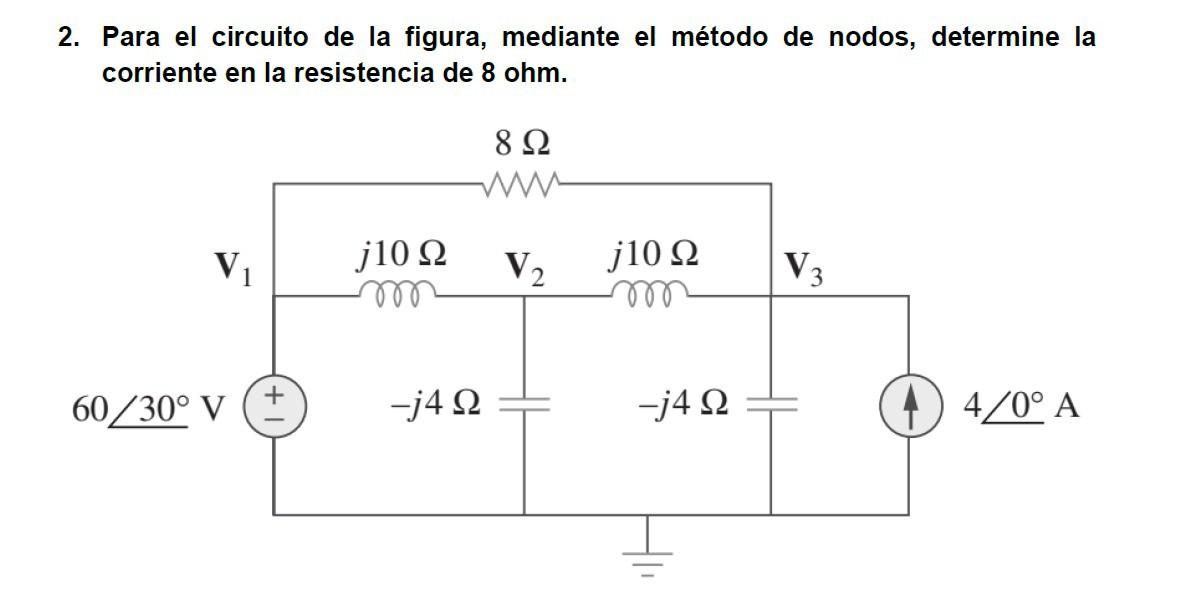

2. Para el circuito de la figura, mediante el método de nodos, determine la corriente en la resistencia de 8 ohm. 8 Ω V₁ 60/30° V j10 Ω m -j4 Ω V₂ j10 Ω V₂ 3 -j4Ω 4/0° A
