Lab Title Combinational Logic Circuit Simulation Impelmentation A B B Part 1 Manual Theoretical Investigation A D 1 (62.4 KiB) Viewed 34 times
Lab Title Combinational Logic Circuit Simulation Impelmentation A B B Part 1 Manual Theoretical Investigation A D 2 (18.3 KiB) Viewed 34 times

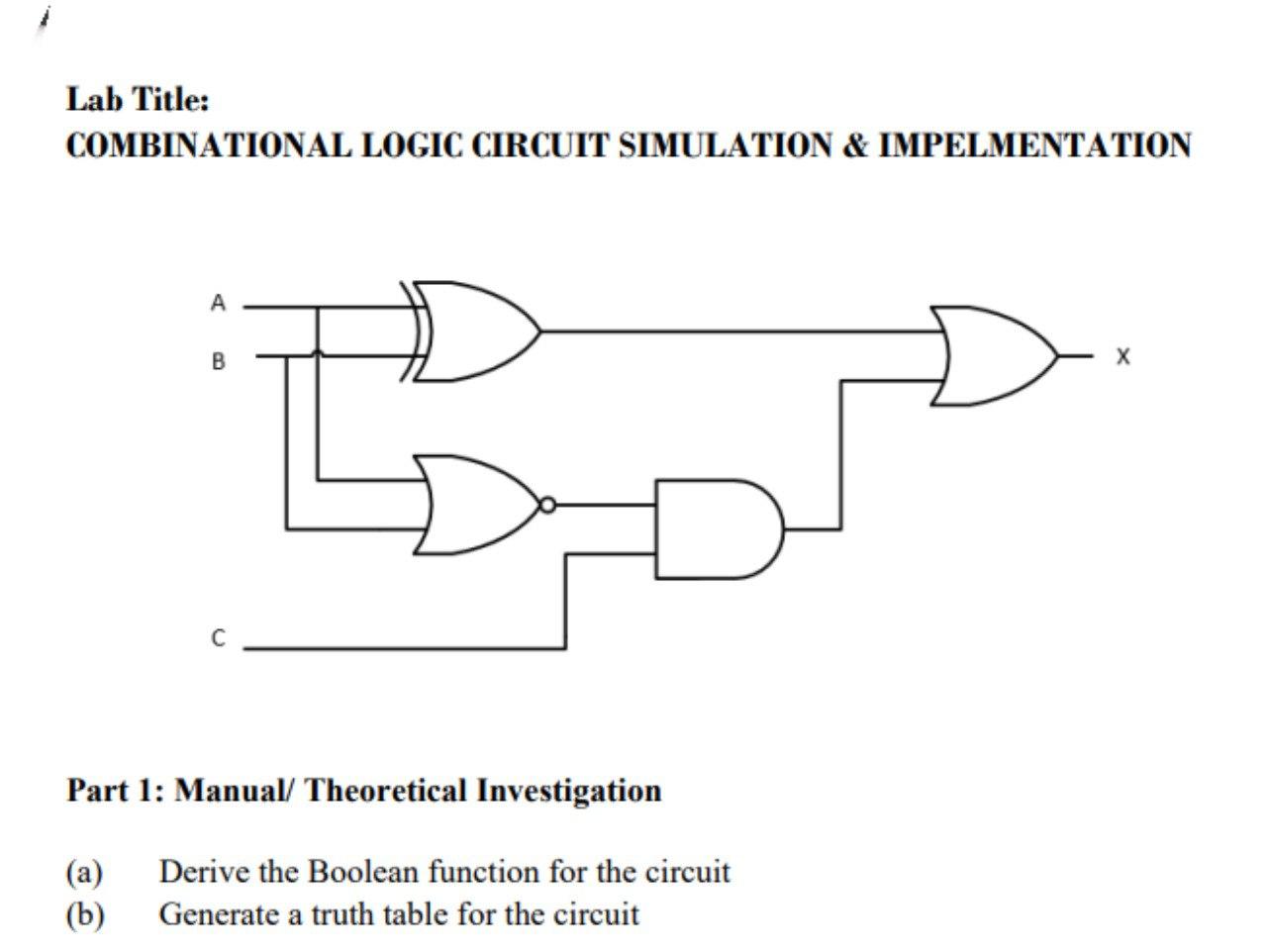

Lab Title: COMBINATIONAL LOGIC CIRCUIT SIMULATION & IMPELMENTATION A B B Part 1: Manual/ Theoretical Investigation (a) Derive the Boolean function for the circuit (b) Generate a truth table for the circuit X

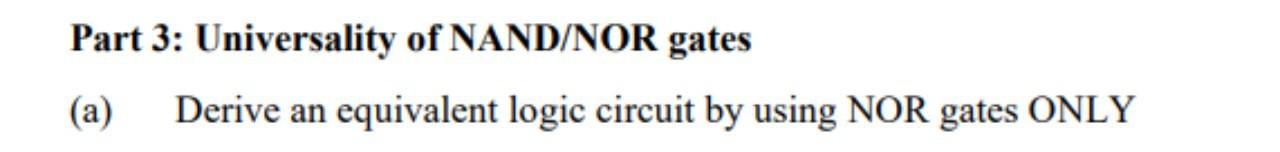

Part 3: Universality of NAND/NOR gates (a) Derive an equivalent logic circuit by using NOR gates ONLY
