Given, current amplification factor is 0.99 and 𝑅𝐶 = 1𝑘Ω
(a) Name the BJT configuration in the figure and state theproper junction biasing to operate in active mode.
(b) If the input current is 12.5 mA, find the output current,base current and output voltage, Vout.
(c) Compare the input resistance, 𝑟𝑖 and output resistance, 𝑟𝑜of the BJT. Justify your answer.
(d) What is the effect on IE if VCB is increased? Justify youranswer.

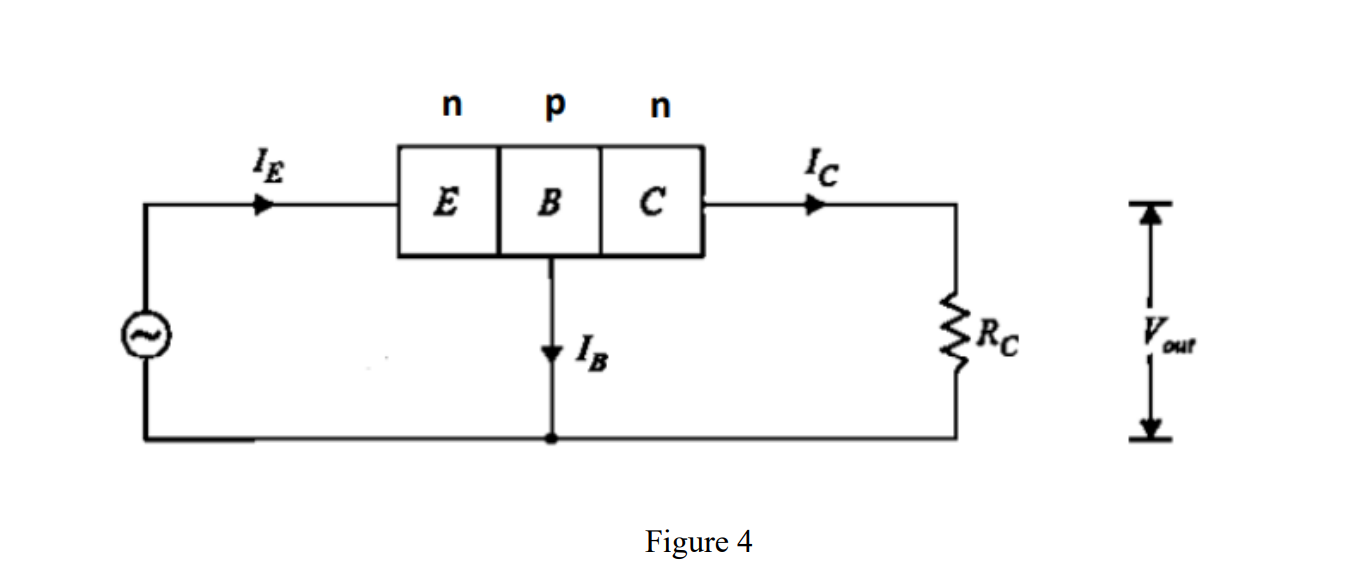

¹E np n B с Figure 4 Ic RC K▬ our
