For the circuit shown below, find the following and show your detailed solution: a o 80 Ω 10 Ω www 6052 20 2 30 Ω a) [10

[answerhappygod]

1 (40.68 KiB) Viewed 40 times

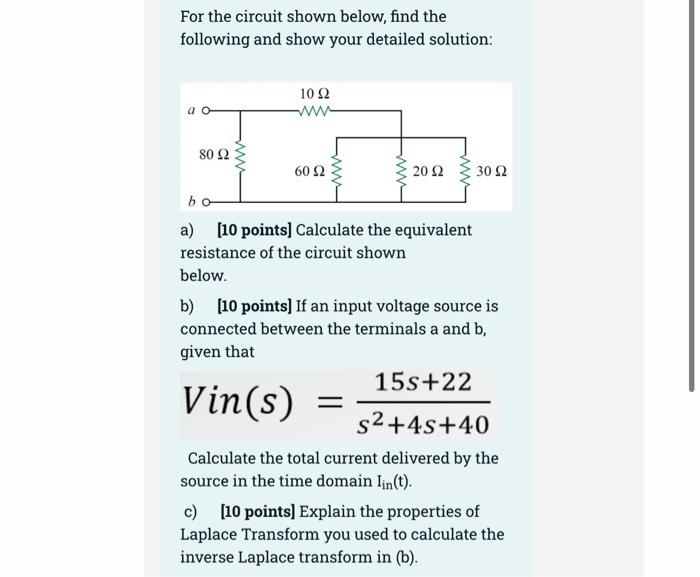

For the circuit shown below, find the following and show your detailed solution: a o 80 Ω 10 Ω www 6052 20 2 30 Ω a) [10 points] Calculate the equivalent resistance of the circuit shown below. b) [10 points] If an input voltage source is connected between the terminals a and b, given that Vin(s) = 15s+22 s²+4s+40 Calculate the total current delivered by the source in the time domain lin(t). c) [10 points] Explain the properties of Laplace Transform you used to calculate the inverse Laplace transform in (b).
