A transistor with B = 150 and U₁ = 80 V with Rc = 3,9 kn is operated in the emitter circuit below. The operating point s

Post by answerhappygod »

A Transistor With B 150 And U 80 V With Rc 3 9 Kn Is Operated In The Emitter Circuit Below The Operating Point S 1
A Transistor With B 150 And U 80 V With Rc 3 9 Kn Is Operated In The Emitter Circuit Below The Operating Point S 1 (17.03 KiB) Viewed 42 times
A Transistor With B 150 And U 80 V With Rc 3 9 Kn Is Operated In The Emitter Circuit Below The Operating Point S 2
A Transistor With B 150 And U 80 V With Rc 3 9 Kn Is Operated In The Emitter Circuit Below The Operating Point S 2 (6.35 KiB) Viewed 42 times

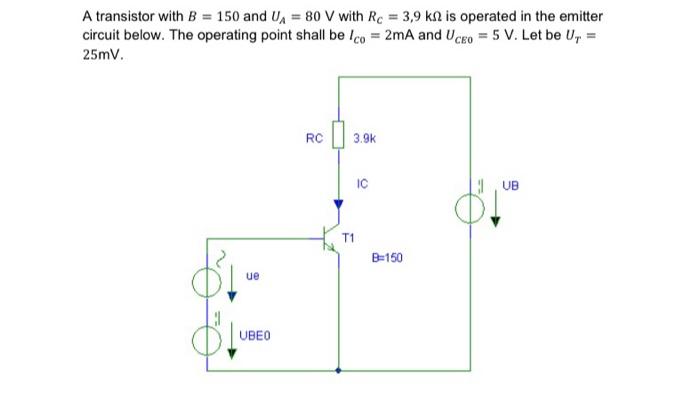

A transistor with B = 150 and U₁ = 80 V with Rc = 3,9 kn is operated in the emitter circuit below. The operating point shall be Ico= 2mA and UCEO = 5 V. Let be U₁ = 25mV. ue UBEO RC 3.9k IC B=150 UB
Determine the amplitude of the AC-collector voltage uce for û = 10mV? Determine the voltage gain v
