2. Design a four-input static CMOS logic gate which implements the Boolean expression F = A·B·C + D. Clearly label all i
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
2. Design a four-input static CMOS logic gate which implements the Boolean expression F = A·B·C + D. Clearly label all i

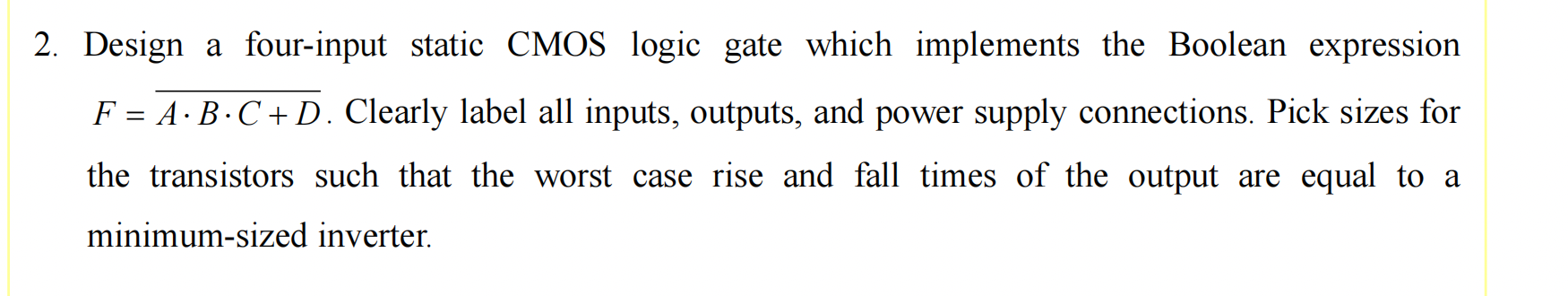

2. Design a four-input static CMOS logic gate which implements the Boolean expression F = A·B·C + D. Clearly label all inputs, outputs, and power supply connections. Pick sizes for the transistors such that the worst case rise and fall times of the output are equal to a minimum-sized inverter.
