Q1(40) (a) Derive an expression for the output voltage versus time (b) plot vouT versus time for two periods. The transi

Post by answerhappygod »

Q1 40 A Derive An Expression For The Output Voltage Versus Time B Plot Vout Versus Time For Two Periods The Transi 1
Q1 40 A Derive An Expression For The Output Voltage Versus Time B Plot Vout Versus Time For Two Periods The Transi 1 (23.58 KiB) Viewed 39 times

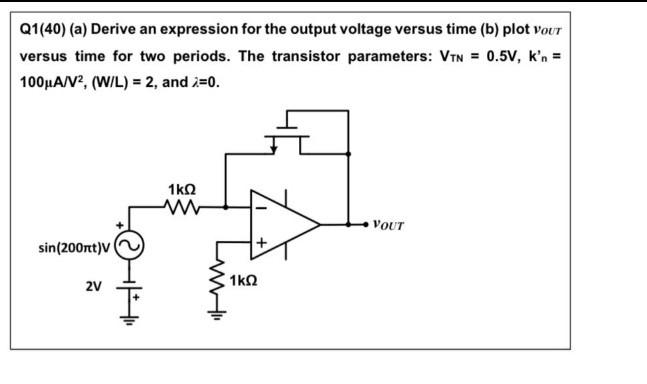

Q1(40) (a) Derive an expression for the output voltage versus time (b) plot vouT versus time for two periods. The transistor parameters: VTN = 0.5V, k'n = 100μA/V², (W/L) = 2, and >=0. sin (200nt)V 2V 1kQ ww 1kQ2 VOUT
