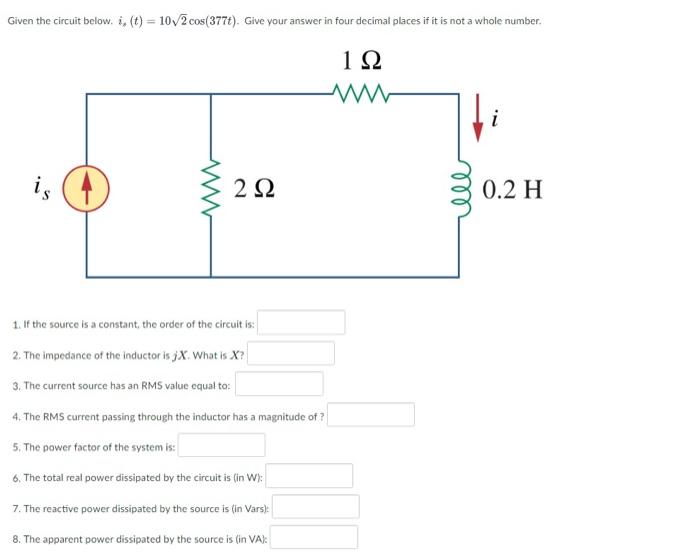

Given the circuit below. i, (t) = 10√2 cos(377t). Give your answer in four decimal places if it is not a whole number. 1

[answerhappygod]

Given The Circuit Below I T 10 2 Cos 377t Give Your Answer In Four Decimal Places If It Is Not A Whole Number 1 1 (25.8 KiB) Viewed 43 times

Given the circuit below. i, (t) = 10√2 cos(377t). Give your answer in four decimal places if it is not a whole number. 192 is (4) ww 292 1. If the source is a constant, the order of the circuit is: 2. The impedance of the inductor is jX. What is X? 3. The current source has an RMS value equal to: 4. The RMS current passing through the inductor has a magnitude of ? 5. The power factor of the system is: 6. The total real power dissipated by the circuit is (in W): 7. The reactive power dissipated by the source is (in Vars): 8. The apparent power dissipated by the source is (in VA): ell i 0.2 H
