Based on below equation and FBD, develop a block diagram using MATLAB Simulink and give explanation: V desired = 0.1 m/s

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Based on below equation and FBD, develop a block diagram using MATLAB Simulink and give explanation: V desired = 0.1 m/s

Post by answerhappygod »

Based On Below Equation And Fbd Develop A Block Diagram Using Matlab Simulink And Give Explanation V Desired 0 1 M S 1
Based On Below Equation And Fbd Develop A Block Diagram Using Matlab Simulink And Give Explanation V Desired 0 1 M S 1 (22.29 KiB) Viewed 39 times

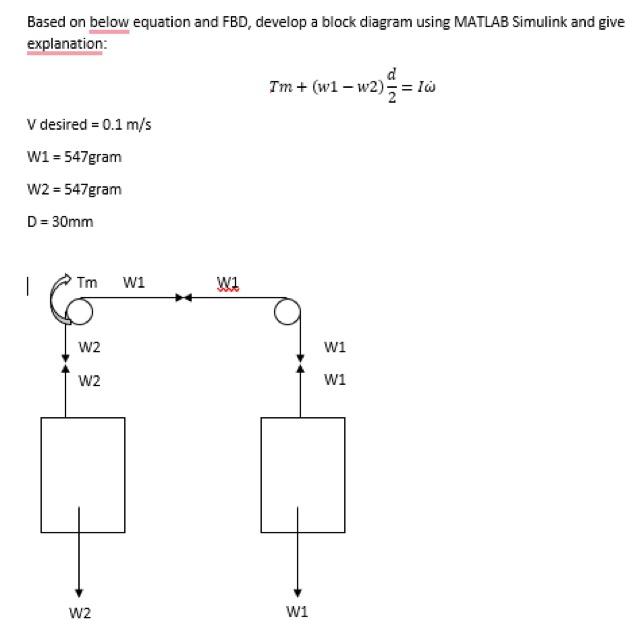

Based on below equation and FBD, develop a block diagram using MATLAB Simulink and give explanation: V desired = 0.1 m/s W1 = 547gram W2 = 547gram D = 30mm T Tm W2 W2 W2 W1 W1 Tm+ (w1 - w2) = 1 W1 W1 W1
