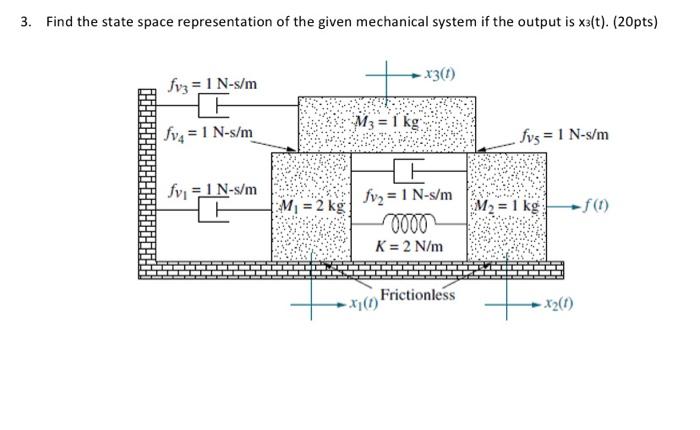

3. Find the state space representation of the given mechanical system if the output is x³(t). (20pts) fv3 = 1 N-s/m fv4 = 1 N-s/m fv₁ = 1 N-s/m M3 = 1 kg M₁ = 2 kg: -x3(1) fv₂=1 = 1 N-s/m 0000 K = 2 N/m -X₁ (1) Frictionless fvs = 1 N-s/m M₂= 1 kg| -f(1) -X₂(1)
