In the circuit of figure P-04, calculate the coupling coil M and determine the loop currents i, and iz if the voltage so
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
In the circuit of figure P-04, calculate the coupling coil M and determine the loop currents i, and iz if the voltage so

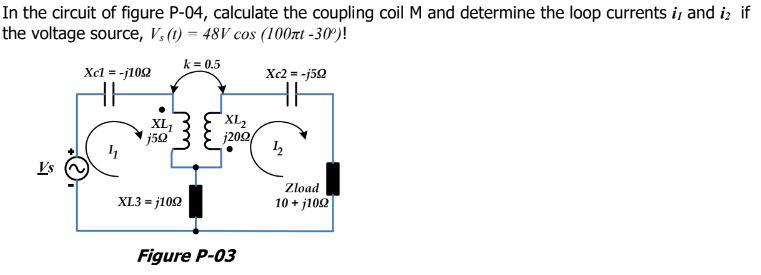

In the circuit of figure P-04, calculate the coupling coil M and determine the loop currents i, and iz if the voltage source, Vs (t) = 48V cos (100nt -30°)! k = 0.5 $1 Xc1= -j1002 4 XL1 j5Q XL3=j1092 XL₂ j200 Figure P-03 Xc2 = -j5Q2 Zload 10+j100
