- 6 Given The Transfer Function Of System G S 1 8 2 S 2s 10 A Sketch The Root Locus Of The System In Matlab U 1 (10.59 KiB) Viewed 41 times
6. Given the transfer function of system: g(s) = 1 (8+2) (s²+2s + 10) a) Sketch the root locus of the system in MATLAB u
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
6. Given the transfer function of system: g(s) = 1 (8+2) (s²+2s + 10) a) Sketch the root locus of the system in MATLAB u

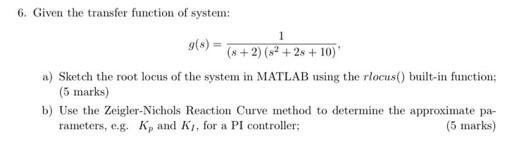

6. Given the transfer function of system: g(s) = 1 (8+2) (s²+2s + 10) a) Sketch the root locus of the system in MATLAB using the rlocus() built-in function; (5 marks) b) Use the Zeigler-Nichols Reaction Curve method to determine the approximate pa- rameters, e.g. K, and K, for a PI controller; (5 marks)
