1. If va = 3 V and vb = 5 V, find vo in the op amp circuit of Figure. (1) (10 Marks) V₂ Hila 2V= 16 kQ www SV 8kQ 12 k w

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

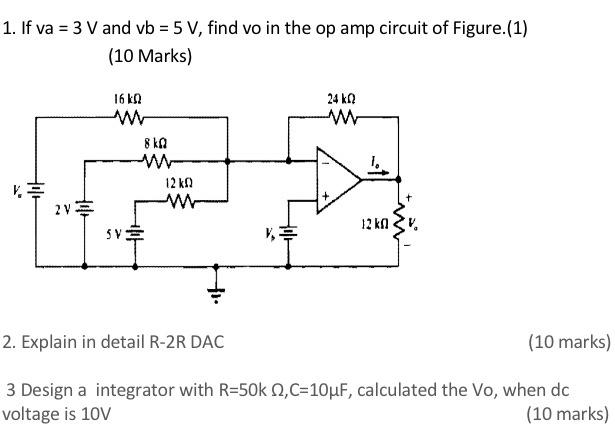

1. If va = 3 V and vb = 5 V, find vo in the op amp circuit of Figure. (1) (10 Marks) V₂ Hila 2V= 16 kQ www SV 8kQ 12 k w
