Please refer to the parallel-based clipper circuit shown below for this problem. For simplicity, assume that Von = 0 for

[answerhappygod]

Please Refer To The Parallel Based Clipper Circuit Shown Below For This Problem For Simplicity Assume That Von 0 For 1 (83.06 KiB) Viewed 40 times

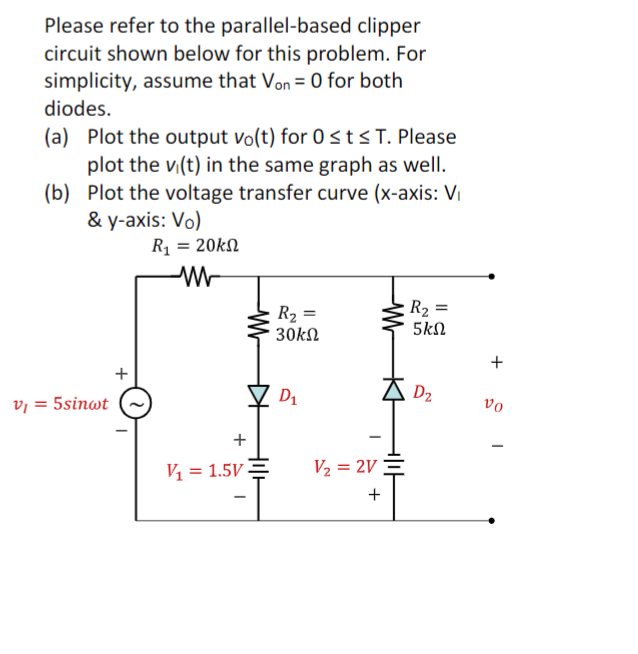

Please refer to the parallel-based clipper circuit shown below for this problem. For simplicity, assume that Von = 0 for both diodes. (a) Plot the output vo(t) for 0 ≤ t ≤ T. Please plot the vi(t) in the same graph as well. Plot the voltage transfer curve (x-axis: V₁ & y-axis: Vo) (b) R1 = 20kΩ M v₁ = 5sinwt + V₁ = 1.5V R₂ = 30ΚΩ D₁ I M V₂ = 2V= + R₂= = 5ΚΩ D₂ vo I
