1) Consider the flowing system: U(s) F₁(s) F₂(s) G₂(s) G₁(s) F3(S) F4(S) F5(s) Y(s) a) [15 points] Reduce the block diag

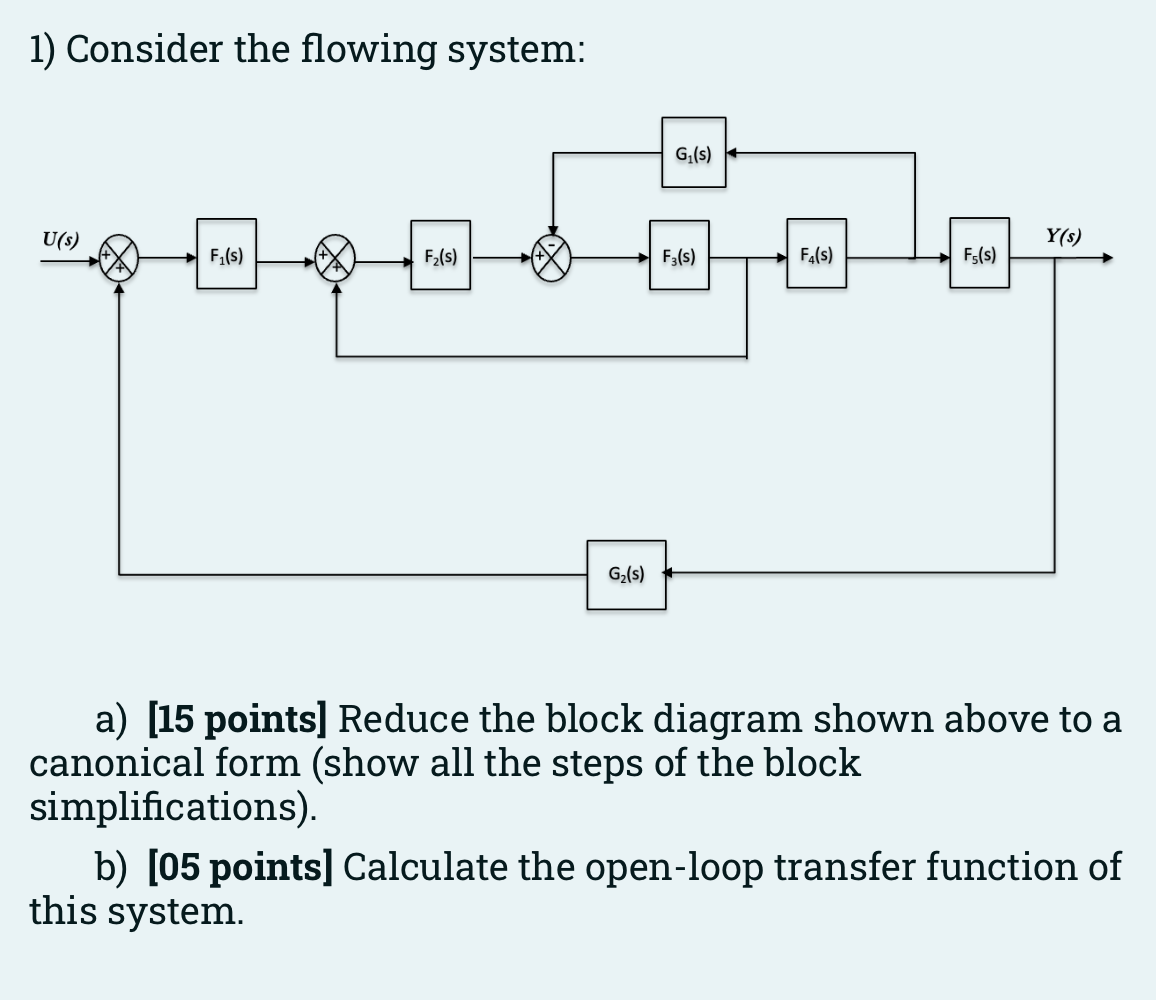

1) Consider the flowing system: U(s) F₁(s) F₂(s) G₂(s) G₁(s) F3(S) F4(S) F5(s) Y(s) a) [15 points] Reduce the block diagram shown above to a canonical form (show all the steps of the block simplifications). b) [05 points] Calculate the open-loop transfer function of this system.
