can you solve this without treating the wires as a short?
one wire is just over lapping the other, but it is not a short.
Can You Solve This Without Treating The Wires As A Short One Wire Is Just Over Lapping The Other But It Is Not A Short 1 (24.06 KiB) Viewed 27 times
Can You Solve This Without Treating The Wires As A Short One Wire Is Just Over Lapping The Other But It Is Not A Short 2 (24.06 KiB) Viewed 27 times

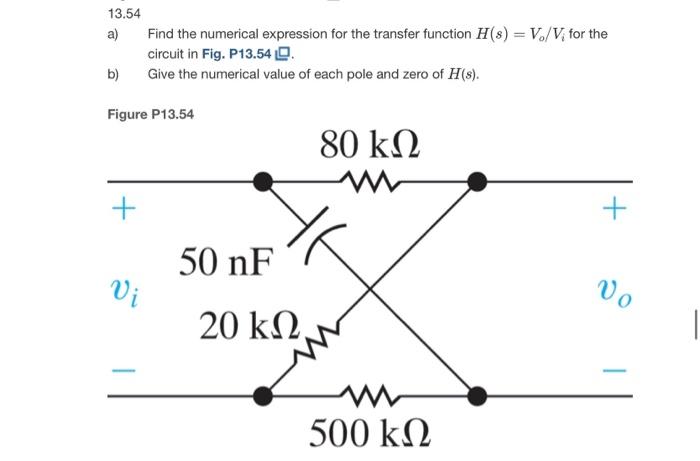

13.54 a) b) Figure P13.54 + Find the numerical expression for the transfer function H(s) = V/V for the circuit in Fig. P13.54 Ε. Give the numerical value of each pole and zero of H(s). U; 50 nF 20 ΚΩ. 80 ΚΩ 500 ΚΩ θα
