Perform each task in this question to construct a synchronous counter using J-K flip-flops. K a. 000 a. P 001 I 010 E 01

[answerhappygod]

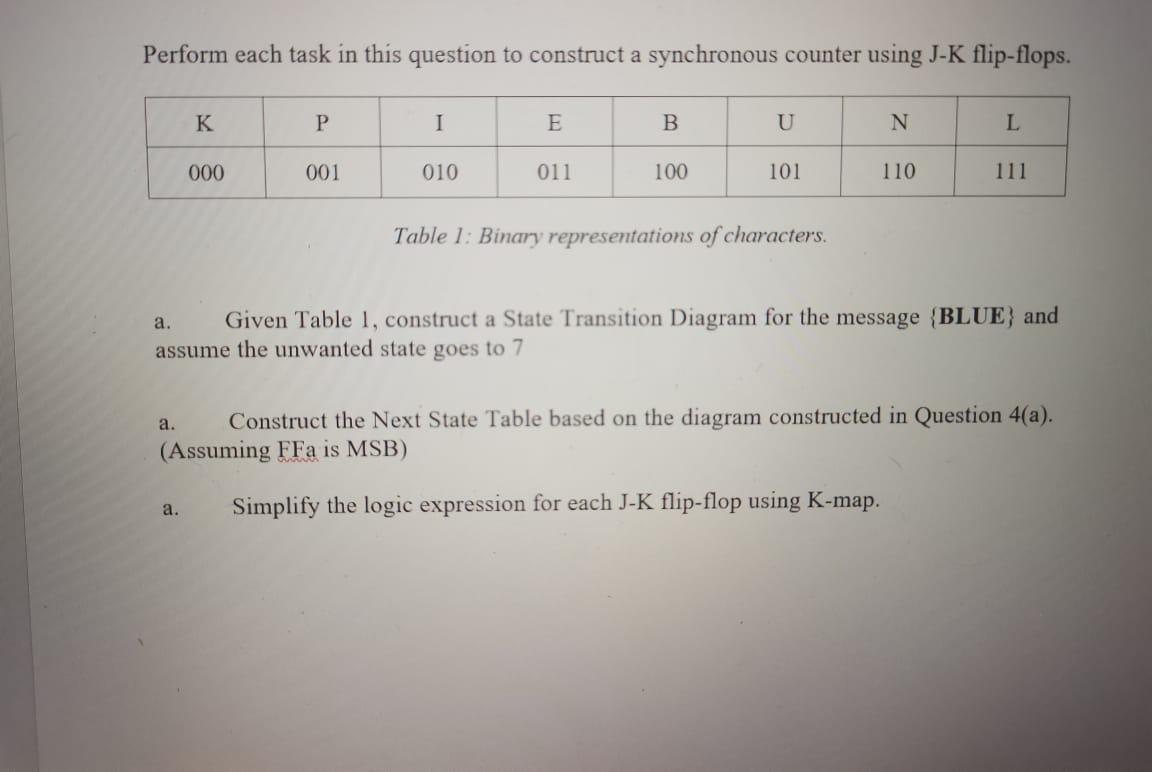

Perform Each Task In This Question To Construct A Synchronous Counter Using J K Flip Flops K A 000 A P 001 I 010 E 01 1 (51.63 KiB) Viewed 35 times

Perform each task in this question to construct a synchronous counter using J-K flip-flops. K a. 000 a. P 001 I 010 E 011 B 100 U 101 Table 1: Binary representations of characters. N 110 L a. Given Table 1, construct a State Transition Diagram for the message (BLUE) and assume the unwanted state goes to 7 111 Construct the Next State Table based on the diagram constructed in Question 4(a). (Assuming FFa is MSB) Simplify the logic expression for each J-K flip-flop using K-map.
