Perform each task in this question to construct a synchronous counter using J-K flip-flops. P 000 K 001 B 010 E 011 I 10

[answerhappygod]

Perform Each Task In This Question To Construct A Synchronous Counter Using J K Flip Flops P 000 K 001 B 010 E 011 I 10 1 (27.27 KiB) Viewed 18 times

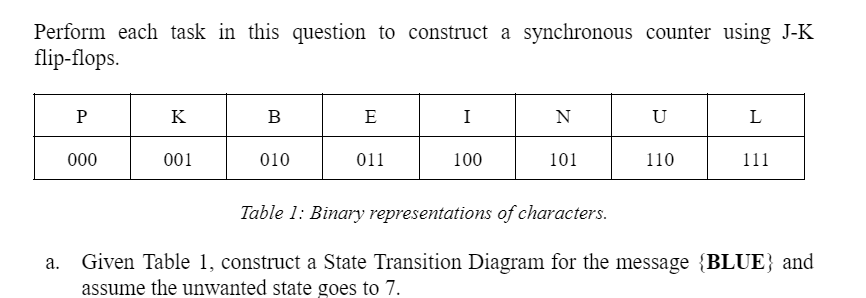

Perform each task in this question to construct a synchronous counter using J-K flip-flops. P 000 K 001 B 010 E 011 I 100 N 101 U 110 L 111 Table 1: Binary representations of characters. a. Given Table 1, construct a State Transition Diagram for the message {BLUE} and assume the unwanted state goes to 7.
