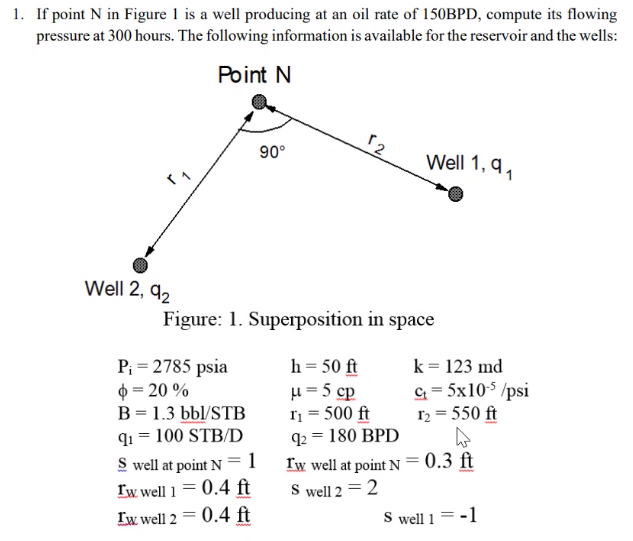

1. If point N in Figure 1 is a well producing at an oil rate of 150BPD, compute its flowing pressure at 300 hours. The f

[answerhappygod]

1 If Point N In Figure 1 Is A Well Producing At An Oil Rate Of 150bpd Compute Its Flowing Pressure At 300 Hours The F 1 (136.24 KiB) Viewed 33 times

1. If point N in Figure 1 is a well producing at an oil rate of 150BPD, compute its flowing pressure at 300 hours. The following information is available for the reservoir and the wells: Point N r₁ Well 2, 92 90° P₁ = 2785 psia $ = 20% B = 1.3 bbl/STB 9₁ = 100 STB/D S well at point N = 1 I'w well 1 = 0.4 ft Iw well 2 0.4 ft 22 Figure: 1. Superposition in space Well 1,9₁ h = 50 ft u=5 cp T₁ = 500 ft 92 = 180 BPD k = 123 md G₁ = 5x10-5/psi 1₂ = 550 ft 4 I'w well at point N = 0.3 ft S well 2 = 2 S well 1 = -1
