(b) Determine total impedance (Z₁), total current (I), and voltage value (VR1, VLI, VC1) based on the series circuit sho

Post by answerhappygod »

B Determine Total Impedance Z Total Current I And Voltage Value Vr1 Vli Vc1 Based On The Series Circuit Sho 1
B Determine Total Impedance Z Total Current I And Voltage Value Vr1 Vli Vc1 Based On The Series Circuit Sho 1 (14.98 KiB) Viewed 18 times

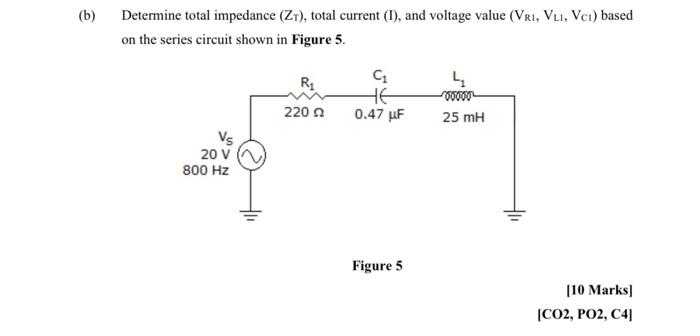

(b) Determine total impedance (Z₁), total current (I), and voltage value (VR1, VLI, VC1) based on the series circuit shown in Figure 5. Vs 20 V 800 Hz R₁ 220 C₁ не 0.47μF Figure 5 4 25 mH [10 Marks] [CO2, PO2, C4]
