QUESTION 3 Figure Q3 shows the steel block has a rectangular cross section and is subjected to an axial compressive forc

Post by answerhappygod »

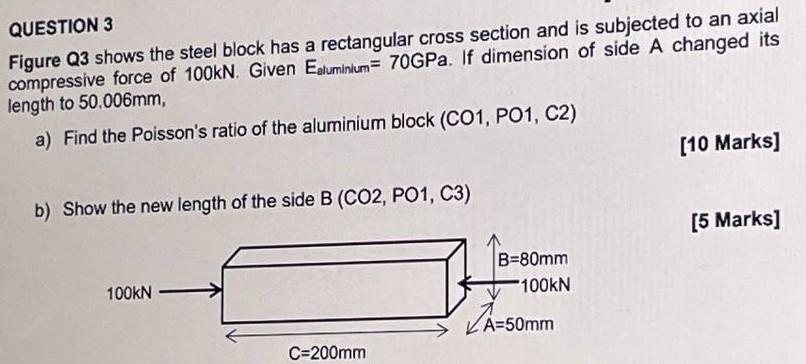

Question 3 Figure Q3 Shows The Steel Block Has A Rectangular Cross Section And Is Subjected To An Axial Compressive Forc 1
Question 3 Figure Q3 Shows The Steel Block Has A Rectangular Cross Section And Is Subjected To An Axial Compressive Forc 1 (41.08 KiB) Viewed 28 times
QUESTION 3 Figure Q3 shows the steel block has a rectangular cross section and is subjected to an axial compressive force of 100kN. Given Ealuminium 70GPa. If dimension of side A changed its length to 50.006mm, a) Find the Poisson's ratio of the aluminium block (CO1, PO1, C2) b) Show the new length of the side B (CO2, PO1, C3) 100KN C=200mm B=80mm *100KN LA=50mm [10 Marks] [5 Marks]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
