Situation 4: A rigid plate of negligible weight rests on the central spring as shown and is loaded with P = 5+2*F+B KN.

Post by answerhappygod »

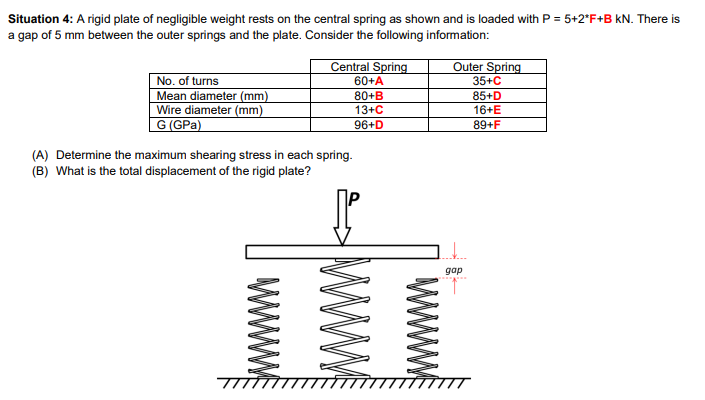

Situation 4 A Rigid Plate Of Negligible Weight Rests On The Central Spring As Shown And Is Loaded With P 5 2 F B Kn 1
Situation 4 A Rigid Plate Of Negligible Weight Rests On The Central Spring As Shown And Is Loaded With P 5 2 F B Kn 1 (58.12 KiB) Viewed 41 times
Situation 4: A rigid plate of negligible weight rests on the central spring as shown and is loaded with P = 5+2*F+B KN. There is a gap of 5 mm between the outer springs and the plate. Consider the following information: No. of turns Mean diameter (mm) Wire diameter (mm) G (GPa) Central Spring 60+A 80+B 13+C 96+D (A) Determine the maximum shearing stress in each spring. (B) What is the total displacement of the rigid plate? 77 Outer Spring 35+C 85+D 16+E 89+F gap
