Vertical alignment: Four intersecting tangents for a proposed alignment of a roadway has the following data: AB = +2.5%,

[answerhappygod]

Vertical Alignment Four Intersecting Tangents For A Proposed Alignment Of A Roadway Has The Following Data Ab 2 5 1 (42.13 KiB) Viewed 62 times

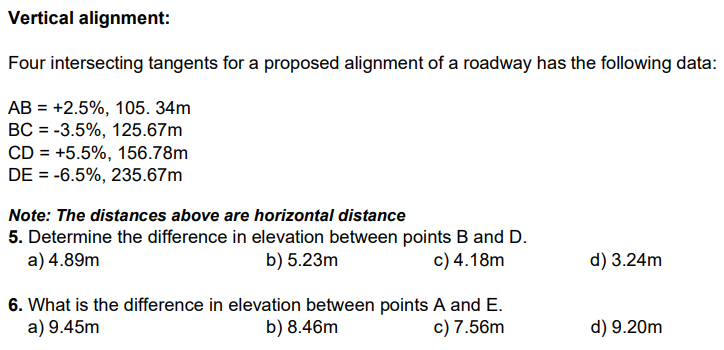

Vertical alignment: Four intersecting tangents for a proposed alignment of a roadway has the following data: AB = +2.5%, 105. 34m BC = -3.5%, 125.67m CD = +5.5%, 156.78m DE = -6.5%, 235.67m Note: The distances above are horizontal distance 5. Determine the difference in elevation between points B and D. a) 4.89m b) 5.23m c) 4.18m 6. What is the difference in elevation between points A and E. a) 9.45m b) 8.46m c) 7.56m d) 3.24m d) 9.20m
