d) Draw a free body diagram of a falling sphere and indicate the forces involved. e) The 60mm diameter siphon is drawing

Post by answerhappygod »

D Draw A Free Body Diagram Of A Falling Sphere And Indicate The Forces Involved E The 60mm Diameter Siphon Is Drawing 1
D Draw A Free Body Diagram Of A Falling Sphere And Indicate The Forces Involved E The 60mm Diameter Siphon Is Drawing 1 (52.41 KiB) Viewed 40 times

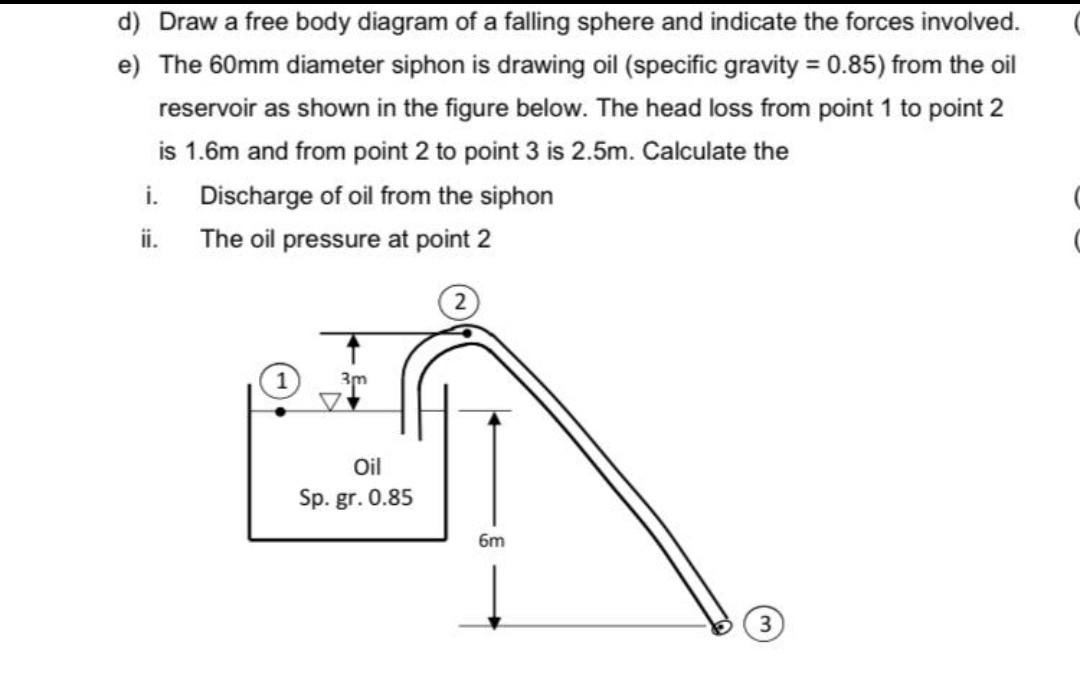

d) Draw a free body diagram of a falling sphere and indicate the forces involved. e) The 60mm diameter siphon is drawing oil (specific gravity = 0.85) from the oil reservoir as shown in the figure below. The head loss from point 1 to point 2 is 1.6m and from point 2 to point 3 is 2.5m. Calculate the i. Discharge of oil from the siphon ii. The oil pressure at point 2 ³r Oil Sp. gr. 0.85 6m 3
