A Simple Pin Connected Truss Is Loaded And Supported As Shown The Truss Is Constructed From Three Aluminum Members Eac 1 (110.55 KiB) Viewed 49 times
HELP THANKS

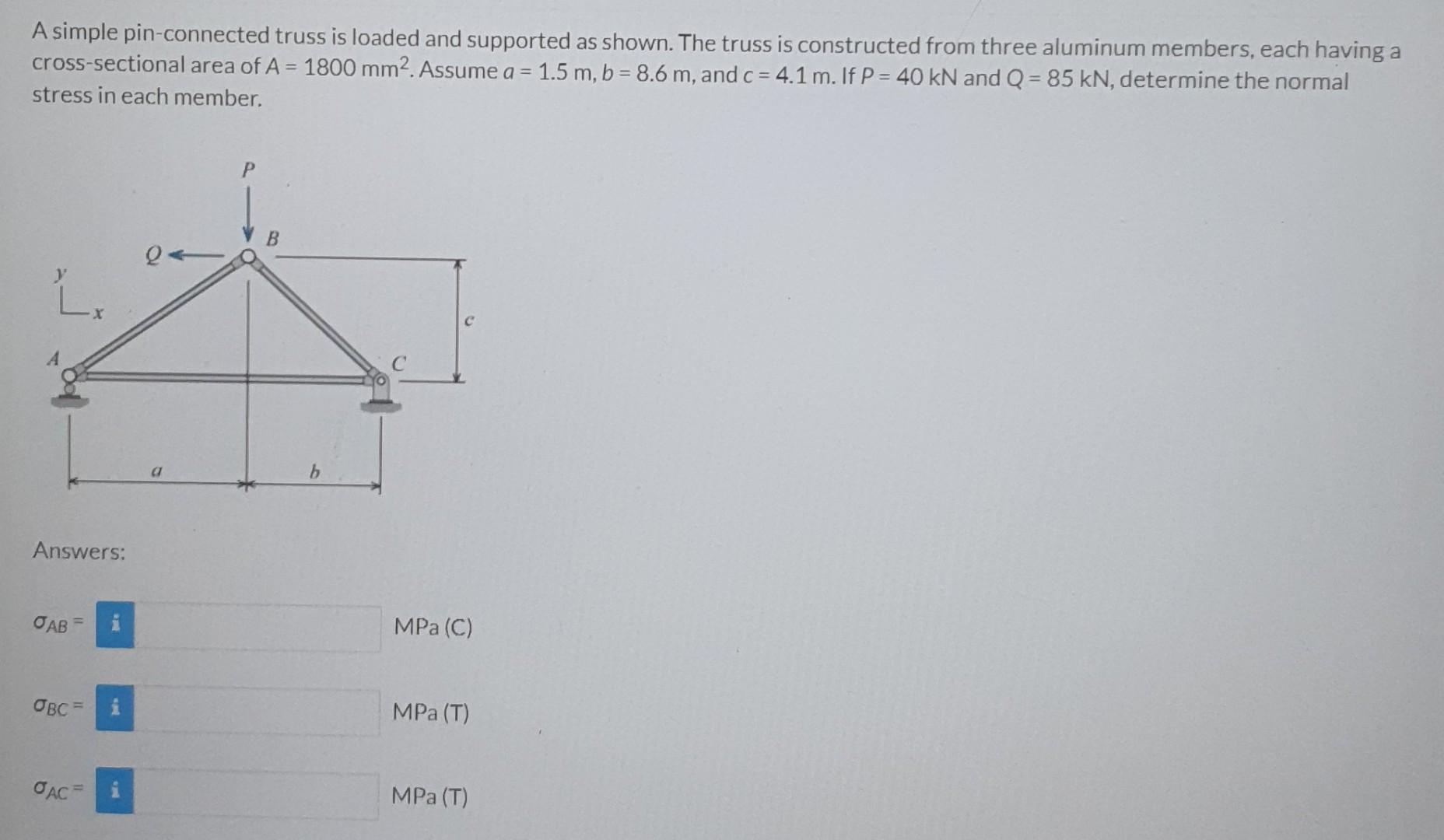

A simple pin-connected truss is loaded and supported as shown. The truss is constructed from three aluminum members, each having a cross-sectional area of A = 1800 mm². Assume a = 1.5 m, b = 8.6 m, and c = 4.1 m. If P = 40 kN and Q = 85 kN, determine the normal stress in each member. L. Answers: OAB OBC= JAC C B b MPa (C) MPa (T) MPa (T)
