1. For each of the structures shown state whether it is unstable, statically determinate, or statically indeterminate. I

[answerhappygod]

1 For Each Of The Structures Shown State Whether It Is Unstable Statically Determinate Or Statically Indeterminate I 1 (373.08 KiB) Viewed 50 times

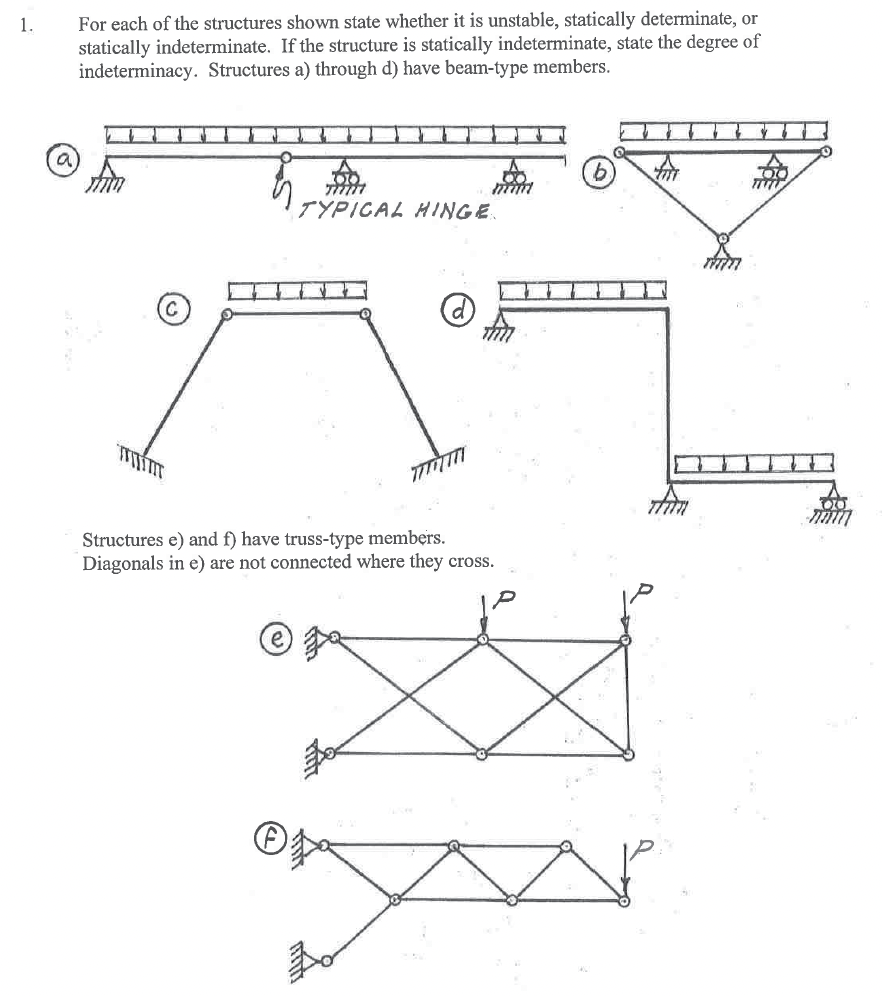

1. For each of the structures shown state whether it is unstable, statically determinate, or statically indeterminate. If the structure is statically indeterminate, state the degree of indeterminacy. Structures a) through d) have beam-type members. C 777777 TYPICAL HINGE TUIT @ F 77777771 Structures e) and f) have truss-type members. Diagonals in e) are not connected where they cross. hemm
