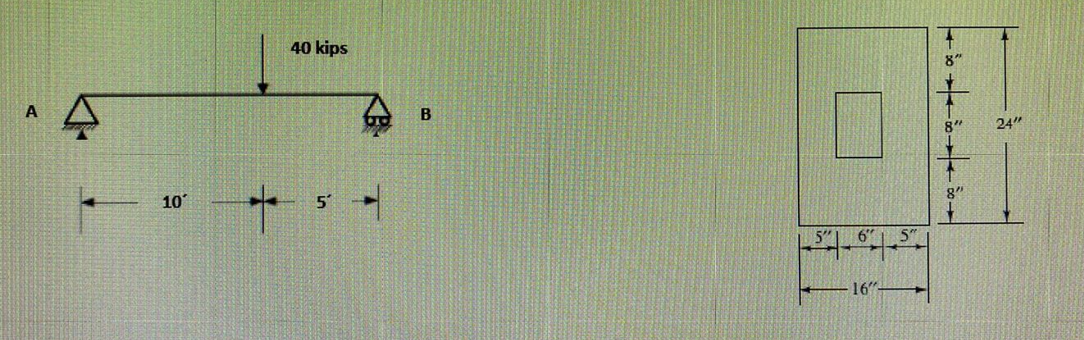

5. Using the conjugate beam method, determine (a) the maximumdeflection of the beam (b) the slope (in degrees) of the beam atsupport "B". The beam is constructed of normal-weight concrete withf'c = 3,500 lb/in2 and has the cross section shown. Take E=57,000√f'c

5 Using The Conjugate Beam Method Determine A The Maximum Deflection Of The Beam B The Slope In Degrees Of The B 1 (998.46 KiB) Viewed 54 times

10* 40 kips B □ 6″ 16" 8" 8" 8" 24"
