Determine the vertical deflection of joint C (in inches) of the truss in Figure .For all bars, E = 29,000 kips/in.², A =

[answerhappygod]

Determine The Vertical Deflection Of Joint C In Inches Of The Truss In Figure For All Bars E 29 000 Kips In A 1 (35.54 KiB) Viewed 34 times

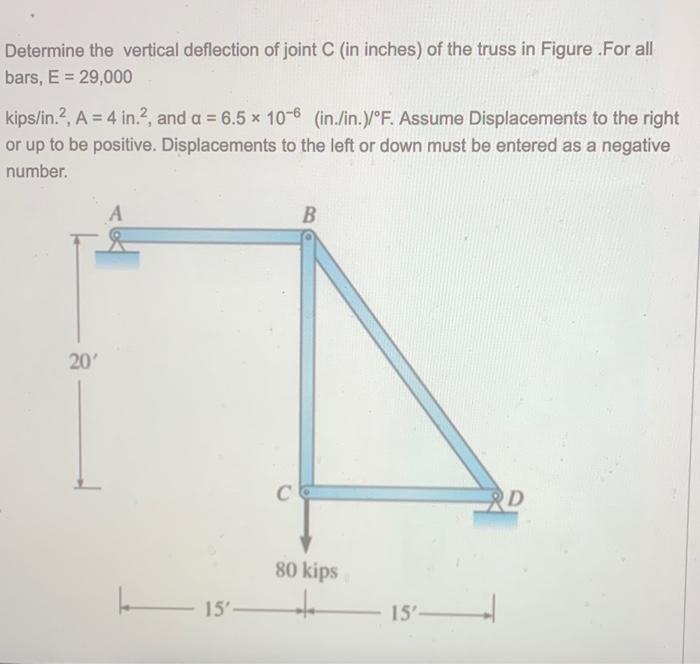

Determine the vertical deflection of joint C (in inches) of the truss in Figure .For all bars, E = 29,000 kips/in.², A = 4 in.², and a = 6.5 x 10-6 (in./in.)/°F. Assume Displacements to the right or up to be positive. Displacements to the left or down must be entered as a negative number. 20' 15- C B 80 kips 15'- D
