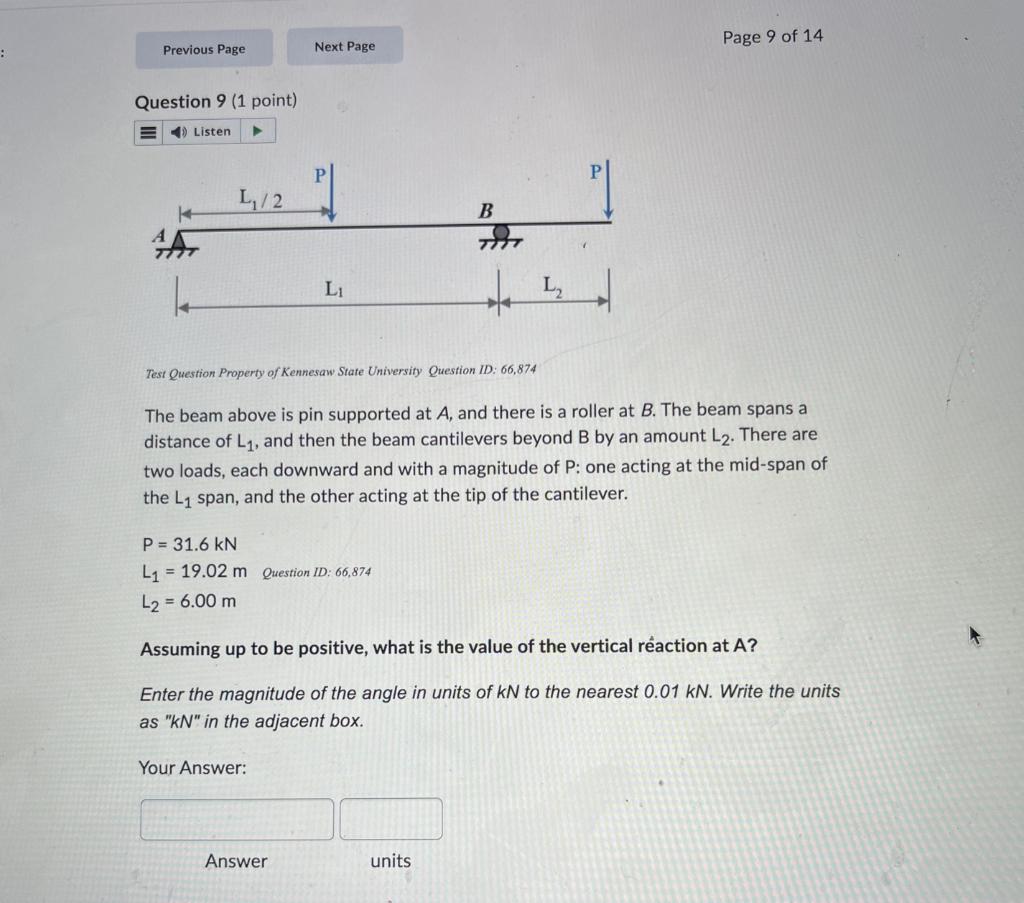

: Previous Page Question 9 (1 point) ◄ Listen L 1/2 P Next Page L₁ P = 31.6 KN L₁ = 19.02 m Question ID: 66,874 L2 = 6.0

[answerhappygod]

Previous Page Question 9 1 Point Listen L 1 2 P Next Page L P 31 6 Kn L 19 02 M Question Id 66 874 L2 6 0 1 (96.44 KiB) Viewed 47 times

: Previous Page Question 9 (1 point) ◄ Listen L 1/2 P Next Page L₁ P = 31.6 KN L₁ = 19.02 m Question ID: 66,874 L2 = 6.00 m Your Answer: Test Question Property of Kennesaw State University Question ID: 66,874 The beam above is pin supported at A, and there is a roller at B. The beam spans a distance of L₁, and then the beam cantilevers beyond B by an amount L2. There are two loads, each downward and with a magnitude of P: one acting at the mid-span of the L₁ span, and the other acting at the tip of the cantilever. Answer B Assuming up to be positive, what is the value of the vertical réaction at A? Enter the magnitude of the angle in units of kN to the nearest 0.01 kN. Write the units as "kN" in the adjacent box. Page 9 of 14 units
