The Beam Has A Span Of 5 M And Spaced At 2 M Center To Center Of The Beam With A Yield Stress For Steel Fy 280 Mpa T 1 (114.07 KiB) Viewed 41 times
Ultimate Strength Design. Pls answer asap. I will upvote thank you!

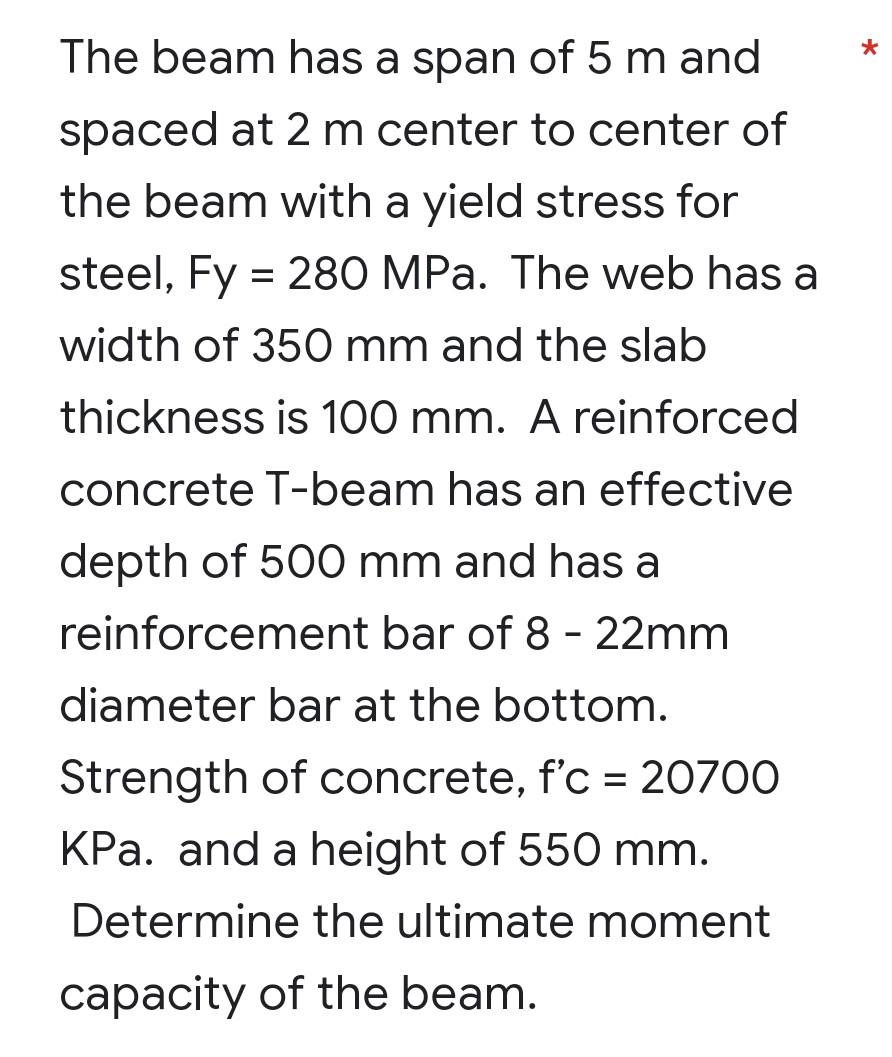

The beam has a span of 5 m and spaced at 2 m center to center of the beam with a yield stress for steel, Fy = 280 MPa. The web has a width of 350 mm and the slab thickness is 100 mm. A reinforced concrete T-beam has an effective depth of 500 mm and has a reinforcement bar of 8 - 22mm diameter bar at the bottom. Strength of concrete, f'c = 20700 KPa. and a height of 550 mm. Determine the ultimate moment capacity of the beam. *
