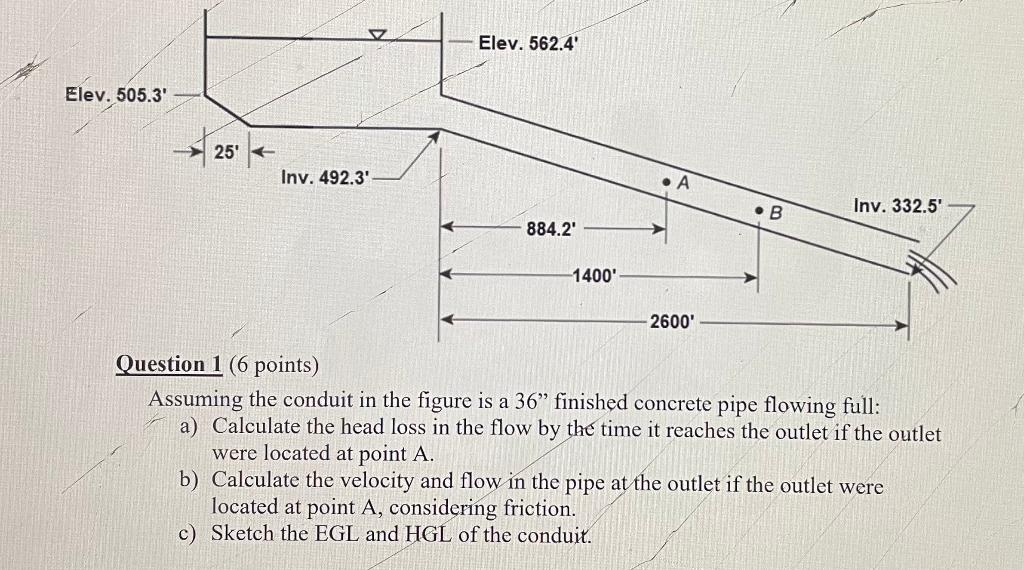

Assuming the conduit in the figure is a 36” finished concretepipe flowing full:
a) Calculate the head loss in the flow by the time it reachesthe outlet if the outlet were located at point A.
b) Calculate the velocity and flow in the pipe at the outlet ifthe outlet were located at point A, considering friction.
c) Sketch the EGL and HGL of the conduit.
