ting the virtual moments. Finally, apply the virtual work equation to calculate the desired displacement or rotation. Th

[answerhappygod]

Ting The Virtual Moments Finally Apply The Virtual Work Equation To Calculate The Desired Displacement Or Rotation Th 1 (30.19 KiB) Viewed 39 times

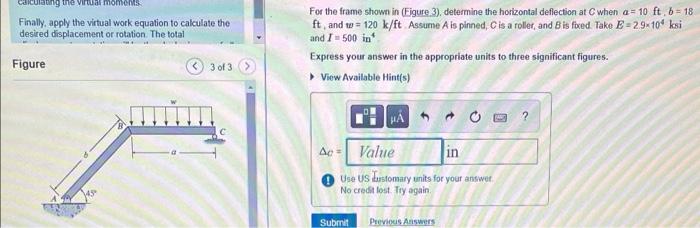

ting the virtual moments. Finally, apply the virtual work equation to calculate the desired displacement or rotation. The total Figure 3 of 3 For the frame shown in (Figure 3), determine the horizontal deflection at C when a = 10 ft. b = 18 ft, and w=120 k/ft Assume A is pinned, C is a roller, and B is fixed. Take E=2.9-10 ksi and I = 500 in Express your answer in the appropriate units to three significant figures. ▸ View Available Hint(s) HA in Use US dustomary units for your answer. No credit lost. Try again. Ac = Value Submit Previous Answers
