Q.1 An overhanging beam ABCD shown in Figure Q.1 supports three sets of loads, namely a uniformly distributed load on th

[answerhappygod]

Q 1 An Overhanging Beam Abcd Shown In Figure Q 1 Supports Three Sets Of Loads Namely A Uniformly Distributed Load On Th 1 (73.32 KiB) Viewed 28 times

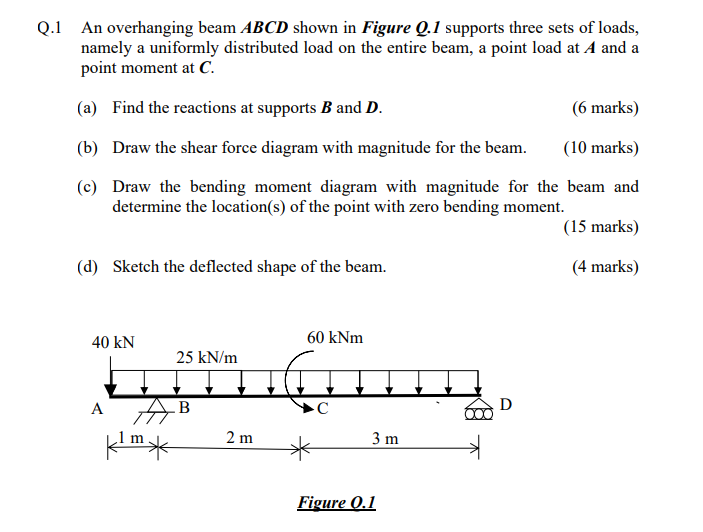

Q.1 An overhanging beam ABCD shown in Figure Q.1 supports three sets of loads, namely a uniformly distributed load on the entire beam, a point load at A and a point moment at C. (a) Find the reactions at supports B and D. (6 marks) (b) Draw the shear force diagram with magnitude for the beam. (10 marks) (c) Draw the bending moment diagram with magnitude for the beam and determine the location(s) of the point with zero bending moment. (d) Sketch the deflected shape of the beam. 40 kN A A klm* 25 kN/m B 2 m 60 kNm 3 m Figure 0.1 D (15 marks) (4 marks)
