A Consider the beam shown in (Figure 1). El is constant. Assume that EI is in kN m². Use the principle of virtual work to solve this problem. Figure 6 m C 6 m < 1 of 1 12 Horizontal beam AB pin-su figure. Point C is the midpo triangular load distribution Provide

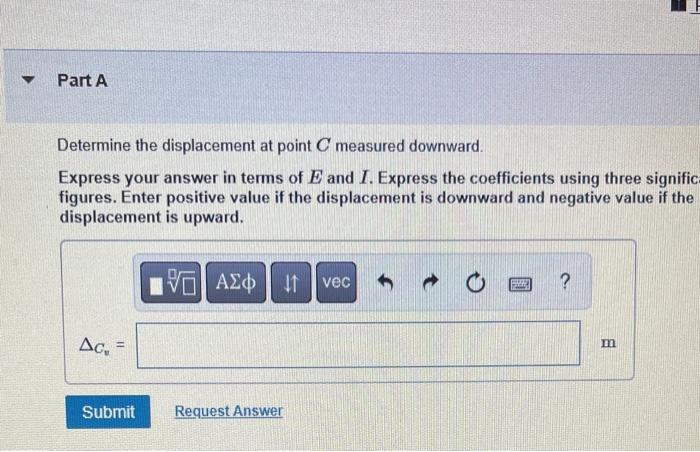

▼ Part A Determine the displacement at point C measured downward. Express your answer in terms of E and I. Express the coefficients using three significa figures. Enter positive value if the displacement is downward and negative value if the displacement is upward. Ac. = Submit IVE ΑΣΦ | 11 Request Answer vec ? IT m
