The cantilever beam is subjected to a concentrated load P. The cross-sectional dimensions of the rectangular tube shape

[answerhappygod]

The Cantilever Beam Is Subjected To A Concentrated Load P The Cross Sectional Dimensions Of The Rectangular Tube Shape 1 (42.54 KiB) Viewed 36 times

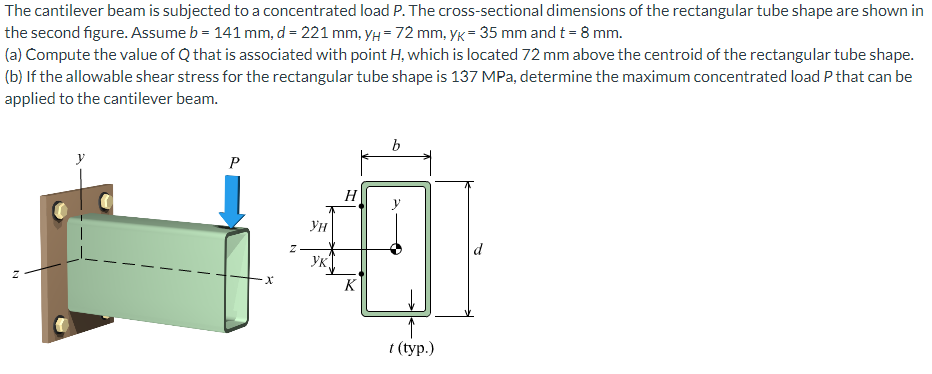

The cantilever beam is subjected to a concentrated load P. The cross-sectional dimensions of the rectangular tube shape are shown in the second figure. Assume b = 141 mm, d = 221 mm, y = 72 mm, yk = 35 mm and t = 8 mm. (a) Compute the value of Q that is associated with point H, which is located 72 mm above the centroid of the rectangular tube shape. (b) If the allowable shear stress for the rectangular tube shape is 137 MPa, determine the maximum concentrated load P that can be applied to the cantilever beam. P Z ун Ук H K b t (typ.) d
