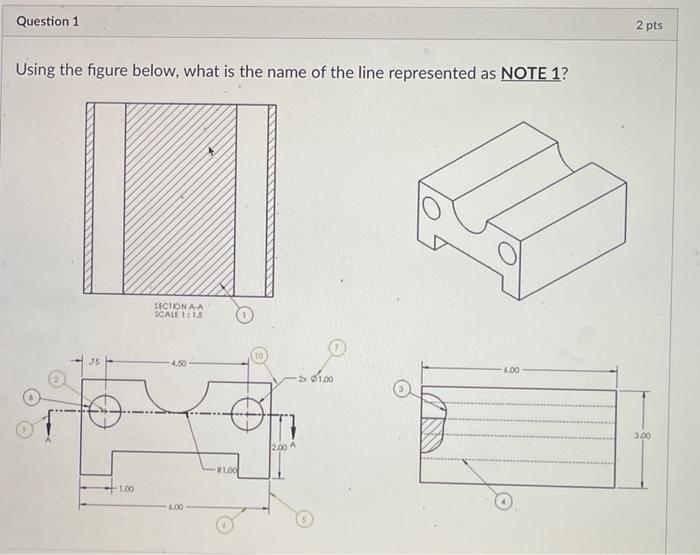

Question 1 Using the figure below, what is the name of the line represented as NOTE 1? 1.00 SECTION A A SCALE 1:15 4.50 6,00 R1,00 10 -2x $1.00 2.00 A 6.00 2 pts 3.00

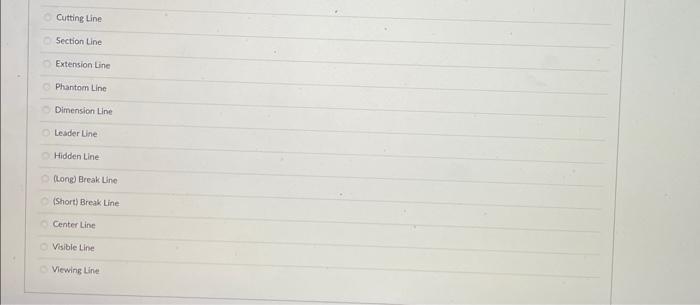

Cutting Line Section Line. Extension Line Phantom Line Dimension Line O Leader Line Hidden Line (Long) Break Line. (Short) Break Line Center Line Visible Line Viewing Line
