In each of the following open channel reach as illustrated in Figures Q3(a) and Q3(b), derive and draw the Water Surface

[answerhappygod]

In Each Of The Following Open Channel Reach As Illustrated In Figures Q3 A And Q3 B Derive And Draw The Water Surface 1 (34.05 KiB) Viewed 35 times

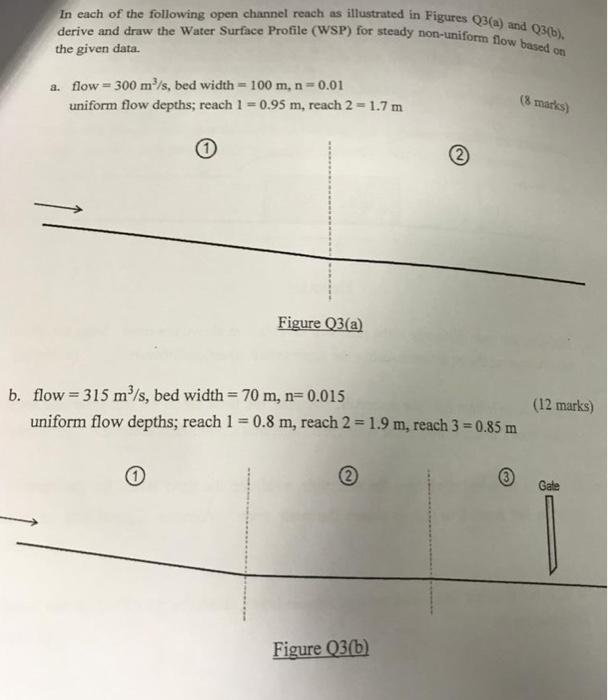

In each of the following open channel reach as illustrated in Figures Q3(a) and Q3(b), derive and draw the Water Surface Profile (WSP) for steady non-uniform flow based on the given data. a. flow = 300 m³/s, bed width= 100 m, n = 0.01 uniform flow depths; reach 1 = 0.95 m, reach 2 = 1.7 m 1 Figure Q3(a) 2 b. flow=315 m³/s, bed width = 70 m, n= 0.015 uniform flow depths; reach 1 = 0.8 m, reach 2 = 1.9 m, reach 3 = 0.85 m Figure Q3(b) (8 marks) (12 marks) Gale
